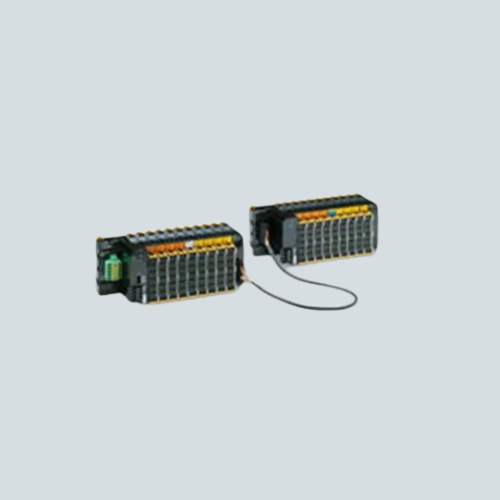

Overview of "Omron GRT1-DA2V"

The Omron GRT1-DA2V is a 2-point analog output unit designed for the SmartSlice GRT1 series I/O system. It provides voltage output with flexible range settings, suitable for precise control in distributed I/O applications.

Key Features of "Omron - GRT1-DA2V"

  • Outputs: 2 analog voltage outputs capable of 0 to 5 V, 1 to 5 V, 0 to 10 V, or ±10 V output ranges.
  • Output Range Setting: Dual configuration via DIP switches (shared setting) or software (individual settings for each output).
  • Input Voltage: Power supply voltage of 24 V DC (20.4 to 26.4 V DC) for unit operation.
  • Resolution: 1/6000 full scale output resolution for fine analog control.
  • Accuracy: ±0.4% full scale at 25°C, ±0.8% full scale across -10 to 55°C temperature range.
  • Conversion Time: Fast analog conversion cycle of 2 ms for both outputs.
  • Connection: Screwless push-in terminal blocks for easy and secure wiring.
  • Isolation: Photocoupler isolation between output and communication lines.
  • Durability: Conforms to IEC reliability standards for shock, vibration, and noise immunity.
  • Mounting: 35 mm DIN rail mountable suitable for modular automation installations.

Technical Specs of "GRT1-DA2V"

Specification Details
Model GRT1-DA2V
Brand Omron
Analog Outputs 2 voltage outputs
Output Voltage Range 0-5 V, 1-5 V, 0-10 V, ±10 V
Output Resolution 1/6000 full scale
Accuracy ±0.4% FS at 25°C, ±0.8% FS -10 to 55°C
Power Supply 24 V DC (20.4-26.4 V)
Conversion Cycle 2 ms for two outputs
Connection Method Screwless push-in terminal block
Isolation Photocoupler between output and communication
Mounting 35 mm DIN rail
Operating Temperature -10°C to 55°C

Applications / Use Case

The Omron GRT1-DA2V is used for precise analog output control in modular automation environments such as factory automation, process control, and distributed I/O systems. Its fast conversion time, versatile output range, and reliable performance make it well suited for high-demand analog control applications.
