E3FB-RP21
E3FB-RP21
Manufacturer: OMRON
Condition: New and Unused, Surplus.

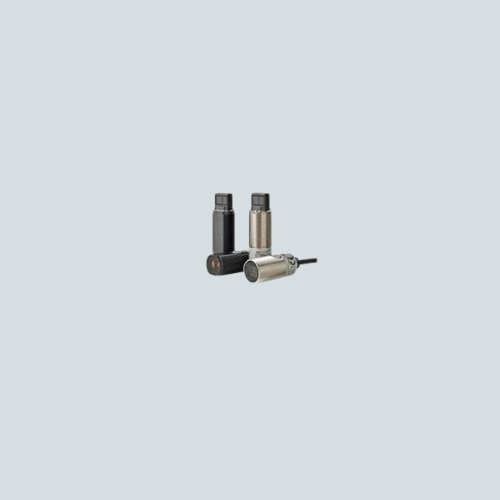

Overview of "Omron E3FB-RP21"
The Omron E3FB-RP21 is a cylindrical axial retro-reflective photoelectric sensor with an M18 threaded barrel, designed for industrial automation sensing applications. It features a sensing distance of up to 4 meters, uses polarized red light, and provides PNP output with selectable Light-ON/Dark-ON modes.
Key Features of "Omron - E3FB-RP21"
- Sensing Method: Retro-reflective using polarized red LED light.
- Sensing Distance: Up to 4000 mm (4 meters) with a minimum sensing distance of 100 mm.
- Output Type: PNP transistor output with Light-ON/Dark-ON selectable operation.
- Connection: M12 connector for simple and reliable field wiring.
- Response Time: Fast response time of 0.5 ms for quick detection.
- Housing Material: Brass with nickel plating for durability and industrial environment suitability.
- Protection Rating: IP67 and IP69K rated for dust-tight and high-pressure water jet resistance.
- Power Supply Voltage: Operates on 10-30 V DC supply voltage.
- Adjustment: Manual adjustment for sensitivity tuning.
Technical Specs of "E3FB-RP21"
| Specification | Details |
|---|---|
| Model | E3FB-RP21 |
| Brand | Omron |
| Type | Cylindrical axial photoelectric sensor |
| Sensing Distance | 100 mm to 4000 mm |
| Output | PNP transistor |
| Operating Modes | Light-ON / Dark-ON (selectable) |
| Connection | M12 connector |
| Response Time | 0.5 ms |
| Housing Material | Brass, nickel plated |
| Thread Size | M18 |
| Power Supply Voltage | 10-30 V DC |
| Protection Rating | IP67 / IP69K |
| Light Source | Polarized red LED (624 nm) |
| Product Length | 48 mm |
Applications / Use Case
The Omron E3FB-RP21 sensor is suitable for detecting objects or parts on conveyor lines, packaging, and manufacturing processes, especially where robust environmental resistance and precise sensing are required. It is widely used in factory automation for reliable presence detection and positioning.
