Buy Omron CS1W-PTS55 – Product Overview

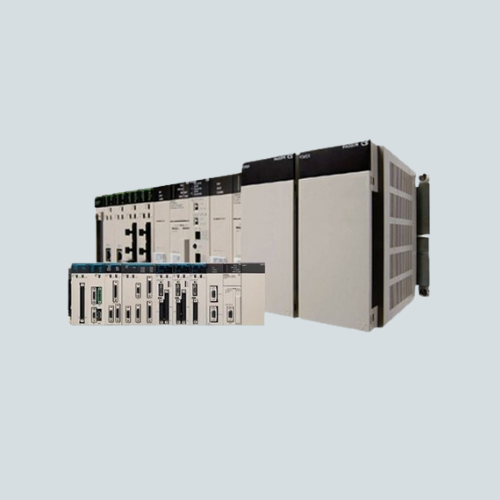

The Omron CS1W-PTS55 is an isolated thermocouple input unit designed for industrial automation and process control applications. This backplane-mounted SYSMAC CS-series analog I/O module delivers reliable temperature measurement with eight independent input channels, supporting multiple thermocouple types including B, E, J, K, N, R, S, and T standards. As a trusted supplier in Canada and the United States, LeadTime.ca stocks genuine OEM Omron components for fast global shipping.
Omron CS1W-PTS55 Features & Benefits
This isolated thermocouple input unit provides independent channel isolation, ensuring accurate signal conditioning across all eight inputs. With a conversion speed of 150 milliseconds per input and ±80mV input range capability, the CS1W-PTS55 delivers precise temperature data for demanding industrial environments. The compact 35 × 130 × 126 mm form factor integrates seamlessly into existing CS-series control systems, while low power consumption (0.18A at 5V, 0.06A at 26V) minimizes system load. All channels operate independently with full isolation, making this module ideal for multi-sensor temperature monitoring in production line systems and factory control panels.
Omron CS1W-PTS55 Specifications & Datasheet
| Specification | Value |
|---|---|
| Input Type | Isolated Thermocouple |
| Number of Channels | 8 Inputs |
| Supported Thermocouple Types | B, E, J, K, N, R, S, T |
| Input Range | ±80mV |
| Conversion Time | 150 ms per input |
| Power Consumption (5V) | 0.18A |
| Power Consumption (26V) | 0.06A |
| Dimensions | 35 × 130 × 126 mm (W × H × D) |
| Weight | 450g max |
Access the official Omron CS1W-PTS55 datasheet to ensure compatibility and review complete configuration details before installation.
Omron CS1W-PTS55 Applications in Industrial Automation
This module is commonly used in industrial automation, process control, machine automation, and production line systems worldwide. The eight-channel thermocouple input capability makes it essential for temperature monitoring in food processing, chemical manufacturing, pharmaceutical production, HVAC systems, and metal treatment facilities. Factories deploying multi-zone temperature control benefit from the independent isolation and fast conversion speed this module provides.
Omron CS1W-PTS55 Price & Worldwide Availability
Check Omron CS1W-PTS55 pricing and real-time stock status online. LeadTime.ca is a worldwide industrial parts distributor offering genuine OEM Omron components with global shipping available. Order now for worldwide delivery or request a quote today for bulk export pricing and competitive rates.
Why Buy Omron Products from LeadTime.ca
Every product on LeadTime.ca is genuine OEM, factory-tested, and sourced from verified suppliers. We offer fast worldwide shipping across North America, Europe, Asia, and international industrial markets. Our commitment to authentic automation components ensures you receive only certified Omron parts backed by manufacturer warranties and technical support.
