CP1W-AD042
CP1W-AD042
Manufacturer: OMRON
Condition: New and Unused, Surplus.

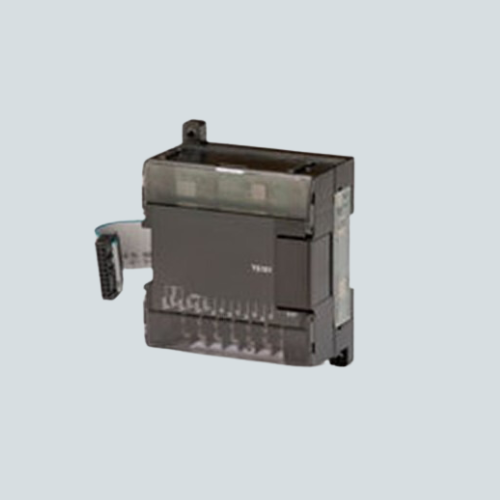

Overview of "Omron CP1W-AD042"
The Omron CP1W-AD042 is an analog input expansion unit designed for Omron CP1W series PLCs. It provides four high-resolution 14-bit analog input channels supporting multiple voltage and current input ranges. This module is intended to provide precise analog signal acquisition for industrial automation applications.
Key Features of "Omron - CP1W-AD042"
- Analog Inputs: 4 input channels for voltage or current signals.
- Input Ranges: Supports multiple voltage ranges (0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V) and current ranges (0 to 20 mA, 4 to 20 mA).
- Resolution: 14-bit analog input resolution for accurate measurement.
- Accuracy: ±0.2% full scale at 25°C for voltage inputs, ±0.3% full scale for current inputs.
- Input Impedance: High input impedance of 1 MΩ for voltage, approx. 250 Ω for current inputs.
- Conversion Time: 1 ms per point, total 4 ms for all points, allowing fast and efficient data acquisition.
- Functions: Includes open-circuit detection and averaging functions for improved signal reliability.
- Isolation: Photocoupler isolation between analog I/O terminals and internal circuits.
- Mounting and Size: Compact unit with dimensions of approximately 90 mm height, 86 mm width, and 50 mm depth weighing about 200 g.
Technical Specs of "CP1W-AD042"
| Specification | Details |
|---|---|
| Model | CP1W-AD042 |
| Brand | Omron |
| Number of Analog Inputs | 4 |
| Input Signal Types | Voltage (0-5V, 1-5V, 0-10V, -10 to 10V), Current (0-20mA, 4-20mA) |
| Resolution | 14 Bit |
| Accuracy | ±0.2% (voltage), ±0.3% (current) full scale at 25°C |
| Input Impedance | Voltage: 1 MΩ, Current: approx. 250 Ω |
| Conversion Time | 1 ms/point (4 ms/all points) |
| Functions | Open-circuit detection, averaging |
| Isolation | Photocoupler isolation between terminals and internal circuit |
| Dimensions (H x W x D) | 90 mm x 86 mm x 50 mm |
| Weight | Approx. 200 g |
| Operating Temperature | 0°C to 55°C |
Applications / Use Case
The Omron CP1W-AD042 analog input module is suitable for applications requiring accurate analog data acquisition such as process control, sensor signal monitoring, and factory automation. Its versatility in input signal types and high resolution makes it ideal for quality-focused industrial systems.
Price Matching / Price on Inquiry
Price Matching / Price on Inquiry
If this item is readily available at a lower price through any valid distributor, please contact us for price matching. Leadtime is committed to providing you with the best value for your purchase.
Warranty
Warranty
Leadtime offers a 1-year warranty for all products sold and repaired, providing a dependable and reliable investment in your company's future.
