CP1W-40EDR

Overview of "Omron CP1W-40EDR"

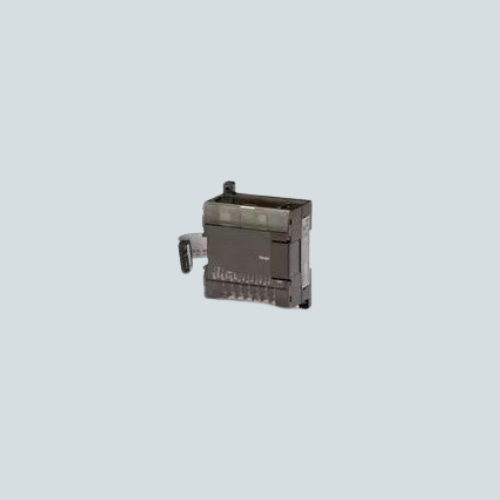

The Omron CP1W-40EDR is a compact I/O expansion unit designed for CP1W series PLCs. It features 24 digital inputs and 16 relay outputs, supporting 24 V DC input voltage and provides high reliability for extending input and output capability in industrial automation systems.

Key Features of "Omron - CP1W-40EDR"

• Number of Digital Inputs: 24 PNP/NPN compatible digital inputs operating at 20.4 to 26.4 V DC.
• Number of Digital Outputs: 16 relay outputs (normally open) rated at 2 A for switching various industrial loads.
• Output Voltage Range: 5 to 250 V AC/DC for flexible output application.
• Output Delay: Fixed OFF/ON delay of 16 ms to ensure reliable switching operation.
• Mounting: DIN rail mountable for easy integration into control panels.
• Compact Dimensions: 90 mm height, 150 mm width, and 50 mm depth with a weight of approximately 380 g.
• Connection: Secure screw terminal connections for easy wiring and maintenance.

Technical Specs of "CP1W-40EDR"

Applications / Use Case

The Omron CP1W-40EDR expansion unit is ideal for industrial automation control systems requiring numerous input signals and relay output switching. It is commonly used in factory automation, process controls, and equipment monitoring where robust and reliable digital I/O expansion is essential.
