Overview of "Omron CP1W-20EDR1"

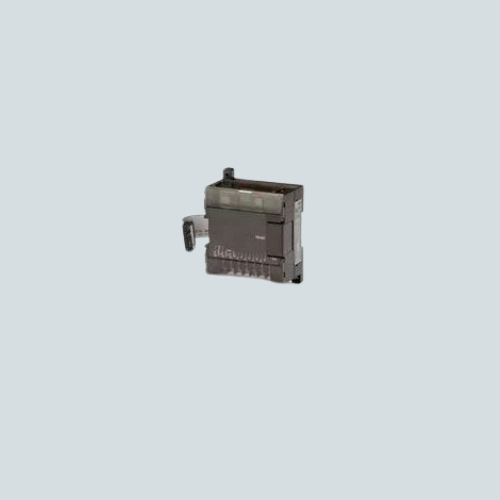

The Omron CP1W-20EDR1 is an I/O expansion unit designed for CP1W series PLCs, featuring 12 digital inputs and 8 relay outputs. It supports a 24 V DC input voltage and is ideal for extending the input/output capacity of compact PLC systems in industrial automation.

Key Features of "Omron - CP1W-20EDR1"

  • 12 Digital Inputs: PNP/NPN compatible inputs supporting 20.4 to 26.4 VDC for flexible sensor integration.
  • 8 Relay Outputs: Normally open relay outputs rated for 2 A current and voltage range of 5 to 250 V AC/DC.
  • Low On/Off Delay: Programmable delay of 0 to 32 ms to suit various control timings.
  • Mounting Type: DIN rail mountable for convenient installation in control panels.
  • Compact Dimensions: 90 mm height, 86 mm width, 50 mm depth with a weight of 300 g for space-saving expansion.
  • Reliable Connection: Screw terminal block for secure and easy wiring.
  • Status Indication: LED indicators for input and output status for easy troubleshooting.

Technical Specs of "CP1W-20EDR1"

Specification Details
Model CP1W-20EDR1
Brand Omron
Number of Digital Inputs 12
Input Type PNP/NPN compatible
Input Voltage 20.4 - 26.4 V DC
Number of Digital Outputs 8 relay outputs (NO)
Output Rating 2 A, 5-250 V AC/DC
Output Type Relay Normally Open
Output Delay 0 to 32 ms (configurable)
Mounting DIN rail
Dimensions (H x W x D) 90 mm x 86 mm x 50 mm
Weight 300 g
Operating Temperature 0°C to 55°C

Applications / Use Case

The Omron CP1W-20EDR1 is used for extending the I/O capabilities of CP1W PLC systems in factory automation and process control. It suits applications requiring a mix of digital inputs and relay outputs for system monitoring, control, and device actuation.
