Overview of "Omron CP1L-M60DT1-D"

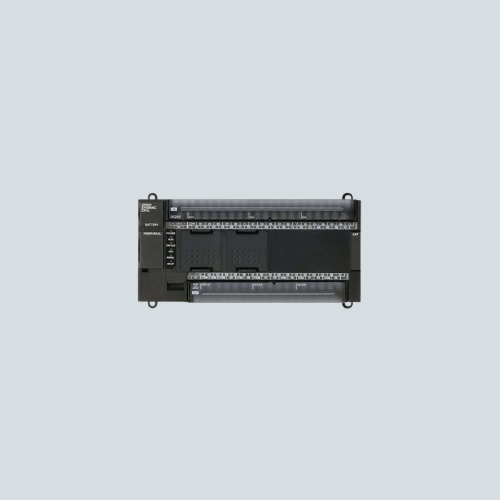

The Omron CP1L-M60DT1-D is a compact programmable logic controller (PLC) in the CP1L series, offering 60 I/O points with 36 digital inputs and 24 PNP transistor outputs. Designed with a 24V DC power supply, it provides a program capacity of 10K steps and 32K words of data memory, suitable for diverse industrial automation applications.
Key Features of "Omron - CP1L-M60DT1-D"
- Total I/O Points: 60 points comprising 36 digital inputs and 24 PNP transistor outputs for versatile control.
- Power Supply: 24V DC providing robust and stable power for industrial environments.
- Program Capacity: Supports 10,000 program steps for complex automation processes.
- Data Memory: 32K words enabling extensive data handling and processing.
- High-Speed Counters: Supports 4 axes at 100 kHz for precise motion control applications.
- Pulse Outputs: 2 axes at 100 kHz for accurate output control signals.
- Communication Ports: Built-in USB port for programming and monitoring.
- Expansion Capability: Supports up to 3 expansion units, allowing up to 180 local I/O points.
- Fast Logic Execution: Executes basic instructions in approximately 0.55 µs for efficient operation.
Technical Specs of "CP1L-M60DT1-D"
| Specification | Details |
|---|---|
| Model | CP1L-M60DT1-D |
| Brand | Omron |
| Supply Voltage | 24 V DC |
| Number of Digital Inputs | 36 (PNP/NPN compatible) |
| Number of Digital Outputs | 24 (PNP transistor outputs) |
| Program Capacity | 10,000 steps |
| Data Memory Capacity | 32K words |
| Logic Execution Time | 0.55 µs per basic instruction |
| Number of Encoder Input Channels | 4 (up to 100 kHz) |
| Max Pulse Output Frequency | 100 kHz (2 axes) |
| Communication Ports | 1 USB port (programming/monitoring) |
| Expansion Units Supported | Up to 3 (max local I/O points 180) |
| Operating Temperature | 0°C to 55°C |
| Dimensions (H x W x D) | 90 mm x 195 mm x 85 mm |
| Weight | 680 g |
Applications / Use Case
The Omron CP1L-M60DT1-D is ideal for machine automation, such as packaging, material handling, and assembly lines, requiring precise control and timing. It is also suitable for process control and building automation applications, providing a versatile solution in compact industrial environments.
-
