Overview of "Omron CP1L-M30DR-A"

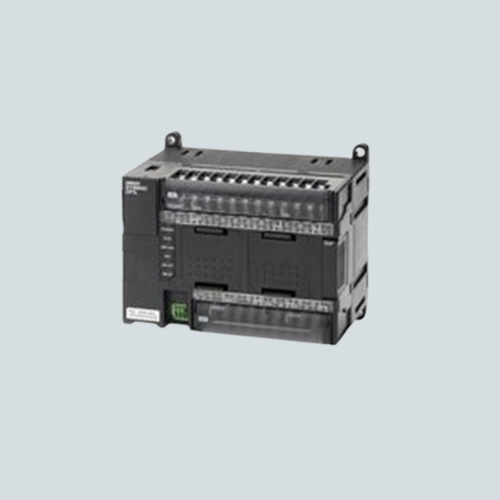

The Omron CP1L-M30DR-A is a compact programmable logic controller (PLC) CPU unit in the CP1L family designed for industrial automation with relay outputs. It features 18 DC inputs, 12 relay outputs, a built-in USB communication port, and supports a program capacity of 10,000 steps and data memory of 32K words.

Key Features of "Omron - CP1L-M30DR-A"

  • Inputs and Outputs: 18 DC inputs and 12 relay outputs rated at 2 A each.
  • Power Supply: AC power supply with a range of 100 to 240 VAC.
  • Communication: Built-in USB 1.1 port for programming and monitoring, with options for serial communication via expansion modules.
  • Memory: 10K steps program capacity and 32K words data memory for extensive automation tasks.
  • High-Speed Counters: 4 channels of high-speed encoder inputs and 2 channels of pulse outputs at up to 100 kHz.
  • Expandable: Supports up to three expansion modules for analog or digital I/O extension.
  • Compatibility: Programming language compatible with CP1H, CJ1, and CS1 PLC series.
  • Operating Environment: Industrial-grade with operating temperature from 0°C to 55°C.
  • Dimensions and Weight: 130 mm width, 110 mm height, 85 mm depth, weighing approximately 610 g.

Technical Specs of "CP1L-M30DR-A"

Specification Details
Model CP1L-M30DR-A
Brand Omron
Number of Inputs 18 (DC)
Number of Outputs 12 (Relay)
Output Current 2 A per output
Power Supply 100 to 240 VAC
Communication Port Built-in USB 1.1
Program Capacity 10,000 steps
Data Memory 32K words
High-Speed Counter Inputs 4 (up to 100 kHz)
Pulse Outputs 2 (up to 100 kHz)
Expandability Up to 3 expansion modules
Operating Temperature 0°C to 55°C
Dimensions (W x H x D) 130 mm x 110 mm x 85 mm
Weight 610 g

Applications / Use Case

The Omron CP1L-M30DR-A is used in small to medium industrial automation projects requiring reliable relay outputs and versatile input capabilities. Its USB connectivity and compatibility with larger Omron PLC ecosystems make it ideal for machinery control, packaging, and factory automation systems.
