CP1H-Y20DT-D

Buy Omron CP1H-Y20DT-D – Product Overview

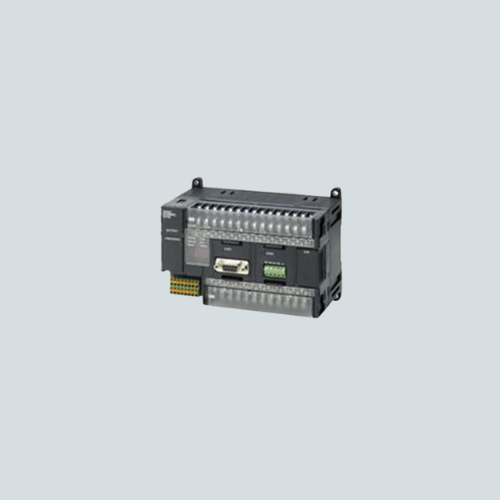

The Omron CP1H-Y20DT-D is a compact programmable logic controller (PLC) CPU unit designed for high-precision industrial automation and motion control applications. This unit combines dual 1 MHz pulse outputs with 20 I/O points (12 DC inputs, 8 NPN transistor outputs) in a space-efficient form factor. Built-in USB connectivity and two option board slots enable seamless integration with serial communications, Ethernet, and LCD display modules. Engineered for reliability in factory control panels, machine automation, and production line systems across North America, Europe, and Asia, this genuine OEM component is available from LeadTime.ca, your trusted worldwide industrial parts distributor with fast global shipping.

Omron CP1H-Y20DT-D Features & Benefits

• Dual 1 MHz pulse outputs for advanced four-axis motion control at 100 kHz
• 20 I/O points: 12 DC inputs and 8 NPN transistor (sinking) outputs
• High-speed counters supporting 100 kHz differential inputs across 2 axes
• Built-in USB peripheral port for rapid programming and diagnostics
• Two optional board slots for RS-232C, RS-485, or Ethernet communications
• 20K steps program capacity with 0.1 µs basic instruction execution time
• Compact 110 x 150 x 85 mm form factor for space-constrained control panels

Omron CP1H-Y20DT-D Specifications & Datasheet

This PLC supports 100–240 VAC input (50/60 Hz) power supply. Memory includes 20K steps program capacity and 32K words data memory. Processing speed achieves 0.1 µs for basic instructions with approximately 400 instructions available. The unit expandable to 300 I/O maximum using CPM1A and CJ1 special I/O modules. Refer to the official Omron CP1H-Y20DT-D datasheet and operation manual for complete configuration details, wiring diagrams, and technical specifications before installation.

Omron CP1H-Y20DT-D Applications in Industrial Automation

This Omron CP1H-Y20DT-D is commonly used in machine automation, process control, motion control systems, factory control panels, and production line systems worldwide. Its dual 1 MHz pulse outputs make it ideal for precision positioning, encoder interfacing, and coordinated multi-axis control in manufacturing environments.

Omron CP1H-Y20DT-D Price & Worldwide Availability

View Omron CP1H-Y20DT-D pricing and stock status online for global dispatch. All products on LeadTime.ca are genuine OEM components sourced from verified suppliers and available for fast worldwide shipping across North America, Europe, Asia, and international industrial markets. Request a quote today for bulk export pricing or immediate delivery.

Why Buy Omron Products from LeadTime.ca

Every product on LeadTime.ca is authentic factory-tested OEM equipment sourced from verified industrial suppliers. We specialize in export-ready automation components with real-time inventory tracking and global dispatch capabilities. Our team provides technical support and expedited shipping to ensure your production lines stay running without downtime.
