CP1H-X40DT-D
CP1H-X40DT-D
Manufacturer: OMRON
Condition: New and Unused, Surplus.
Overview of "Omron CP1H-X40DT-D"

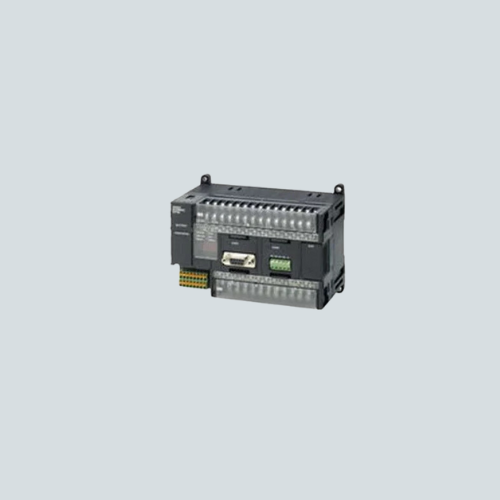

The Omron CP1H-X40DT-D is a compact, high-performance DC-powered CPU unit in the CP1H series PLCs, featuring 24 digital inputs and 16 NPN transistor outputs (sourcing). It supports advanced motion control with 4 encoder inputs and 4 pulse outputs at 100 kHz, plus extensive communication options, ideal for precise industrial automation.
Key Features of "Omron - CP1H-X40DT-D"
- Inputs/Outputs: 24 DC inputs and 16 NPN transistor outputs (sourcing).
- Pulse and Encoder Inputs: 4 axes encoder inputs and 4 pulse outputs supporting up to 100 kHz frequency for high-speed motion control.
- Memory Capacity: 20,000 program steps and 32K words data memory for complex automation tasks.
- Power Supply: 24 V DC operation.
- Communication Ports: Built-in USB for programming and monitoring; supports extensive communication protocols including CAN, CompoBus/S, DeviceNet, EtherCAT, Ethernet/IP, MODBUS, PROFIBUS, and PROFINET.
- Advanced Functions: Supports function block programming, battery-free memory backup, and real-time clock.
- Dimensions: Compact form factor with 110 mm height, 150 mm width, and 85 mm depth.
- Operating Temperature: Suitable for industrial environments with 0°C to 55°C operating range.
Technical Specs of "CP1H-X40DT-D"
| Specification | Details |
|---|---|
| Model | CP1H-X40DT-D |
| Brand | Omron |
| Input Voltage | 24 V DC |
| Number of Digital Inputs | 24 (DC) |
| Number of Digital Outputs | 16 (NPN transistor sourcing) |
| Encoder Inputs | 4 axes, up to 100 kHz |
| Pulse Outputs | 4 outputs, up to 100 kHz |
| Program Capacity | 20,000 steps |
| Data Memory | 32K words |
| Communication Ports | USB, CAN, CompoBus/S, EtherCAT, DeviceNet, Ethernet/IP, MODBUS, PROFIBUS, PROFINET |
| Memory Backup | Battery-free |
| Operating Temp. | 0°C to 55°C |
| Dimensions (H x W x D) | 110 mm x 150 mm x 85 mm |
| Weight | 600 g |
Applications / Use Case
The Omron CP1H-X40DT-D is suited for applications requiring precise positioning and high-speed motion control, such as robotics, packaging machines, and CNC machinery. Its rich communication options and advanced features make it a versatile and powerful CPU for industrial automation projects.
