Buy Omron CJ1W-TS562 – Product Overview

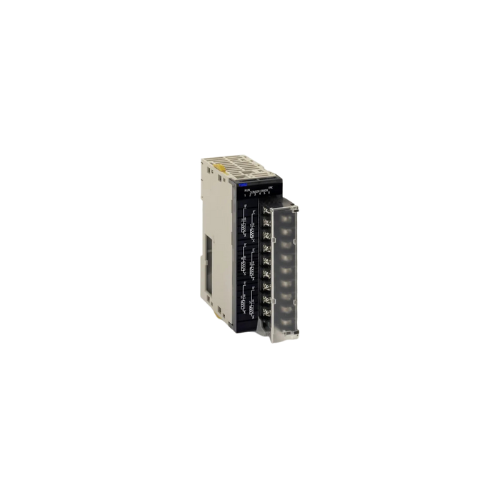

The Omron CJ1W-TS562 is a 6-channel RTD input unit designed for temperature measurement in industrial automation systems. This analog I/O module connects seamlessly to CJ1-series PLC systems and supports both Pt100 and Pt1000 temperature sensors with 3-wire configuration. With 13-bit resolution and 0.1°C indication accuracy, it delivers reliable temperature monitoring for process control applications worldwide. Available for global shipping from LeadTime.ca, a trusted supplier in Canada and the United States.
Omron CJ1W-TS562 Features & Benefits
- 6 independent temperature input channels for flexible sensor integration
- Support for Pt100 and Pt1000 RTD sensors (IEC 60751 compliant)
- High-resolution 13-bit analog input conversion
- 3-wire RTD connection topology for enhanced accuracy
- 40–400ms input response time depending on frequency suppression settings
- Screw terminal connections for secure industrial wiring
- Compact 31 × 90 × 89mm form factor, 176g weight
- Operating range: -200.0 to +650.0°C for both sensor types
- Measurement accuracy: ±0.7% or ±0.8°C (whichever is larger)
- 250mA maximum 5V DC power consumption from CJ1 I/O bus
Omron CJ1W-TS562 Specifications & Datasheet
| Parameter | Value |
|---|---|
| Manufacturer | Omron Automation & Safety |
| Model | CJ1W-TS562 |
| I/O System | CJ I/O Bus |
| Number of Analog Inputs | 6 |
| Temperature Sensor Type | Pt100, Pt1000 (IEC 60751) |
| Resolution | 13 Bit, 0.1°C indication |
| Measurement Range | -200.0 to +650.0°C |
| Input Accuracy | ±0.7% ±1 digit (0–55°C ambient) |
| Response Time | 40–400ms (frequency dependent) |
| Connector Type | Screw terminal, removable block |
| Dimensions (W × H × D) | 31 × 90 × 89mm |
| Weight | 176g |
| Operating Temperature | 0–55°C |
| Power Consumption | 250mA @ 5V DC |
Refer to the official Omron CJ1W-TS562 datasheet for complete configuration details and installation requirements.
Omron CJ1W-TS562 Applications in Industrial Automation
This Omron CJ1W-TS562 is commonly used in industrial automation, process control, and machine automation systems. It excels in production line control panels, factory automation, and motion control environments where precise temperature monitoring is critical. The module integrates seamlessly into existing CJ1 PLC architectures, making it ideal for retrofit projects and new installations across manufacturing facilities in North America, Europe, Asia, and international industrial markets.
Omron CJ1W-TS562 Price & Worldwide Availability
View Omron CJ1W-TS562 pricing and real-time stock status online with global dispatch options. LeadTime.ca is a worldwide industrial parts distributor offering export-ready automation components with fast worldwide shipping. Request a quote today for bulk orders, OEM partnerships, or direct purchasing.
Why Buy Omron Products from LeadTime.ca
All products on LeadTime.ca are genuine, authentic OEM components sourced from verified suppliers and factory-tested for reliability. We specialize in fast worldwide shipping across North America, Europe, Asia, and international industrial markets. Our team provides expert technical support and procurement assistance for industrial automation projects of any scale.
