CJ1W-OD232
CJ1W-OD232
Manufacturer: OMRON
Condition: New and Unused, Surplus.
Overview

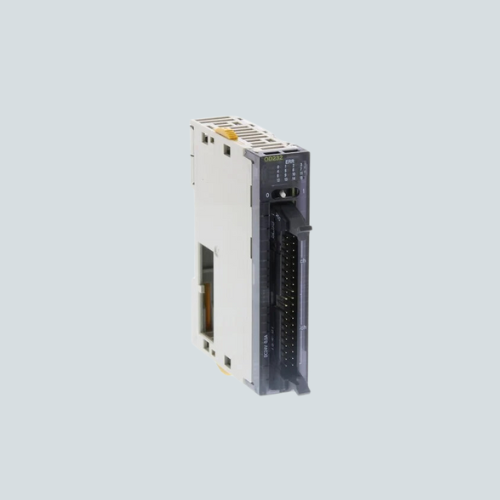

The Omron CJ1W-OD232 is a 32-point digital output module designed for use with CJ-series PLC systems. It provides PNP transistor outputs rated at 24 VDC and 0.5 A per channel. Built with integrated short-circuit protection and a MIL40 connector interface (connector not included), this module supports reliable, high-speed output switching for industrial automation environments.
Key Features
- 32 transistor outputs (PNP type)
- Rated output: 24 VDC, 0.5 A per point
- Short-circuit detection with automatic reset
- Standard MIL40 connector (plug sold separately)
- Response time: 0.5 ms ON / 1.0 ms OFF
- DIN rail mounting for compact installations
- CE, UL, and RoHS compliant
Technical Specifications
| Number of Outputs | 32 (2 circuits, 16 points/common) |
| Output Type | Transistor (PNP, sourcing) |
| Rated Voltage | 24 VDC |
| Voltage Range | 20.4–26.4 VDC |
| Max Load Current | 0.5 A/point, 4.0 A/unit |
| Short-circuit Protection | Yes (0.7–2.5 A detection) |
| Connector | MIL40 (not included) |
| Mounting | DIN rail |
| Dimensions | 90 x 20 x 83.6 mm |
| Weight | Approx. 80 g |
Applications
Suitable for discrete output control in PLC-based automation, machine tools, packaging lines, and factory I/O systems.
