Overview of "Omron CJ1W-OD212"

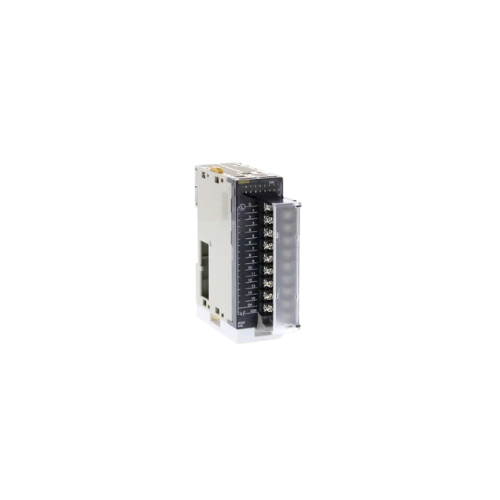

The Omron CJ1W-OD212 is a 16-point transistor output unit designed for the CJ-series PLCs, featuring PNP transistor outputs with short-circuit protection. This unit is ideal for controlling actuators and other devices in industrial automation systems with reliable switching performance.

Key Features of "Omron - CJ1W-OD212"

  • 16 Transistor Outputs: Provides 16 PNP transistor outputs with a maximum output current of 0.5 A per point.
  • Short-Circuit Protection: Includes load short-circuit detection and automatic restart to protect the unit and connected devices.
  • Operating Voltage: Supports an operating voltage range of 20.4 to 26.4 V DC for stable output control.
  • Fast Response Time: ON response time up to 0.5 ms and OFF response time up to 1.0 ms for quick switching.
  • Connection Type: Screw terminal type with a single detachable I/O connector for easy wiring.
  • Compact and Lightweight: Dimensions of 90 mm (H) x 31 mm (W) x 89 mm (D) and weighs just 64 g for space-saving installation.
  • Compliance: Meets insulation resistance and dielectric strength standards ensuring operational safety.

Technical Specs of "CJ1W-OD212"

Specification Details
Model CJ1W-OD212
Brand Omron
Number of Outputs 16 (Transistor, PNP)
Output Current 0.5 A per point, 5.0 A per unit
Output Voltage 20.4 to 26.4 V DC
Short-Circuit Protection Yes, automatic restart after error clearance
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Connection Screw terminal with detachable connector
Dimensions (H x W x D) 90 mm x 31 mm x 89 mm
Weight 64 g
Insulation Resistance 20 MΩ minimum at 100 V DC
Dielectric Strength 1,000 V AC for 1 minute

Applications / Use Case

The Omron CJ1W-OD212 is suited for digital output control in factory automation, machine control, and process automation. Its robust design and safety features provide reliable operation in various industrial settings supported by Omron’s trusted brand quality.
