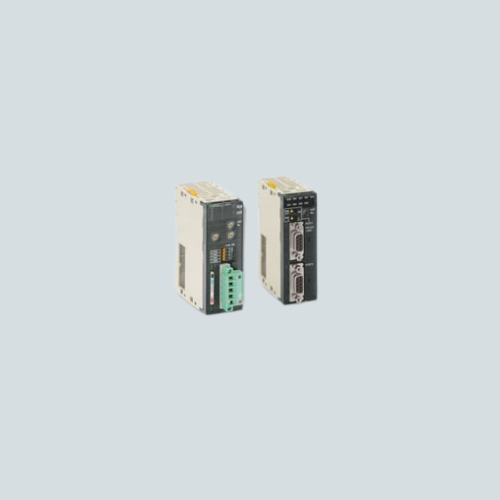

CJ1W-CLK23

Available on Request
$0.00
$0.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Overview of Omron CJ1W-CLK23

The Omron CJ1W-CLK23 is a Controller Link communication unit designed for CJ-series PLCs that enables high-speed and reliable data communication on industrial automation networks. It supports a maximum data rate of 2 Mbps over shielded twisted-pair cables and allows communication with multiple nodes in a multi-drop bus configuration.

Key Features

  • Single communication port using Controller Link protocol.
  • Supports data rates up to 2 Mbps with Manchester coding and HDLC frame synchronization.
  • Max number of nodes up to 32 (without repeaters) or 62 (with repeaters).
  • Uses shielded twisted-pair cables with screw terminals for secure connections.
  • Supports polling, self-diagnostics, echo back, and broadcast tests for network maintenance.
  • Compatible with CX-One and CX-Programmer software for integration and monitoring.
  • Compact size suitable for DIN rail mounting: approximately 90 mm (H) x 31 mm (W) x 82 mm (D).
  • Operating temperature range: 0°C to 55°C.
  • Current consumption: typical 0.06 A at 24 V DC.

Technical Specifications

Specification Details
Model CJ1W-CLK23
Brand Omron
Protocol Controller Link
Communication Port 1 (shielded twisted-pair cable)
Max Data Rate 2 Mbps
Max Number of Nodes 32 (standard), 62 (with repeaters)
Cabling Type Shielded twisted-pair cable
Wiring Connection Screw terminals
Dimensions (H x W x D) 90 x 31 x 82 mm
Power Supply 24 V DC
Current Consumption 0.06 A typical at 24 V DC
Operating Temperature 0°C to 55°C
Weight ~110 g

Applications

The CJ1W-CLK23 is suited for industrial automation networks requiring fast, reliable, and extensive communication between PLC units and other devices. It is used in factory automation, process control, and distributed control systems where Controller Link protocol networks are deployed.
