Buy Omron C200H-CT021 – Product Overview

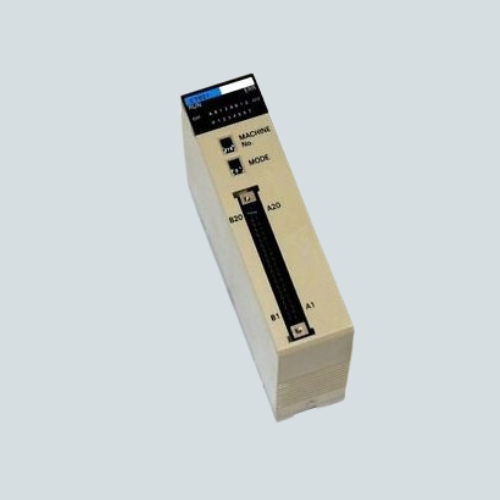

The Omron C200H-CT021 is a high-speed counter unit designed for the C200H, C200HS, C200HX, C200HG, and C200HE programmable controllers. This Special I/O Module delivers dual built-in counters with line driver input capability, enabling seamless integration with incremental encoders in demanding industrial automation environments. With a maximum counting rate of 75,000 cps, the C200H-CT021 provides reliable pulse counting for motion control and process monitoring applications across North America, Europe, and Asia.

Omron C200H-CT021 Features & Benefits

This industrial-grade counter module features two independent high-speed increment/decrement counters, each supporting offset phase, up/down pulse, and pulse+direction inputs. The integrated RS-422 line driver input circuit eliminates the need for external signal conditioning. Key capabilities include Simple Counter Mode, Linear Mode (drum function), Circular Mode, Gate Mode, Cumulative Gate Mode, and Sampling Mode. Outputs include 8 selectable NPN/PNP external outputs with 5–24 VDC switching capacity. The unit operates at 12–24 VDC ±10%, consuming 400 mA maximum at 5 VDC from the backplane.

Omron C200H-CT021 Specifications & Datasheet

Number of counters: 2 | Maximum counting rate: 75,000 cps | Input types: Offset phase (A/B), up/down pulse, pulse+direction | External outputs: 8 points (NPN/PNP selectable) | Output switching capacity: 16–80 mA at 5–24 VDC | Supply voltage: 12–24 VDC ±10% | Internal consumption: 400 mA max. at 5 VDC | Response time: 0.1 ms maximum | Counter input Z pulse width: 100 µs minimum. Access the official Omron C200H-CT021 datasheet and technical manual for complete configuration details and installation guidelines.

Omron C200H-CT021 Applications in Industrial Automation

This counter module is widely deployed in factory control panels, production line systems, machine automation, motion control systems, and industrial process control worldwide. It excels in encoder-based position tracking, speed measurement, and event counting for conveyor systems, packaging equipment, and precision manufacturing.

Omron C200H-CT021 Price & Worldwide Availability

Check Omron C200H-CT021 pricing and real-time stock status online with global dispatch capabilities. LeadTime.ca supplies genuine OEM units for bulk orders and export-ready delivery across international industrial markets.

Why Buy Omron Products from LeadTime.ca

Every product on LeadTime.ca is genuine, factory-tested, and sourced from verified suppliers. We offer fast worldwide shipping across North America, Europe, and Asia, ensuring your critical automation components arrive on schedule.
