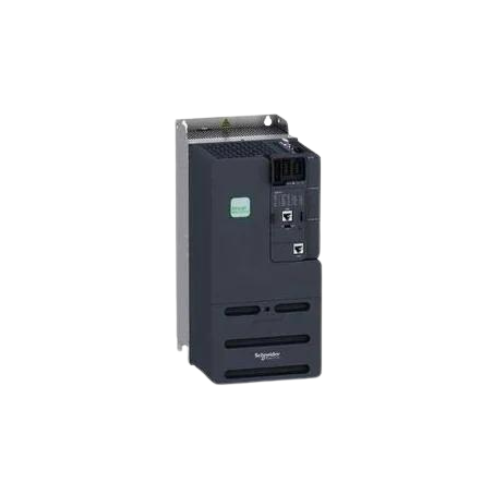

atv340d11n4-11kw

Key Features

• Heavy-Duty Design: Built to withstand vibration, shock, and non-conductive dust, making it suitable for the most demanding environments.
• IoT-Ready: Fully integrated with modern automation systems for seamless connectivity and enhanced control.
• Wide Motor Compatibility: Supports IE2, IE3, and IE4 synchronous, asynchronous, and reluctance motors for versatile use.
• Advanced Safety Features: Includes Safe Torque Off (STO), Safe Brake Management (SBC/SBT), and Safe Stop 1 (SS1) for enhanced operational safety.
• Environmental Compliance: Green Premium certified and RoHS compliant, ensuring a sustainable, eco-friendly solution.

Technical Specifications

• Power Rating: 11 kW (15 hp) for heavy-duty applications
• Supply Voltage: 380-480V, 3-phase
• Current Rating: 24.0A (normal duty), 28.8A (heavy duty)
• Dimensions: 180mm (W) x 385mm (H) x 249mm (D), Weight: 9.5 kg
• Mounting: Vertical position (+/- 10° tolerance), cabinet mount
• Communication Protocol: Modbus serial, Profibus, PROFINET, CANopen, EtherCAT
• Relay Outputs: 2 programmable outputs for motor protection

Applications / Use Case

The ATV340D11N4 is designed for use in industries requiring heavy-duty drives, including material handling, packaging, and hoisting operations. Its rugged design and broad motor compatibility make it an excellent choice for a wide range of applications.

Optional: Sustainability & Environmental Impact

• Green Premium Certified: Complies with Schneider Electric's sustainability initiatives.
• RoHS Compliant: Free from hazardous materials to promote a safer, more sustainable product lifecycle.
• WEEE Disposal Guidelines: Meets WEEE requirements for safe disposal in the European Union.
