Overview

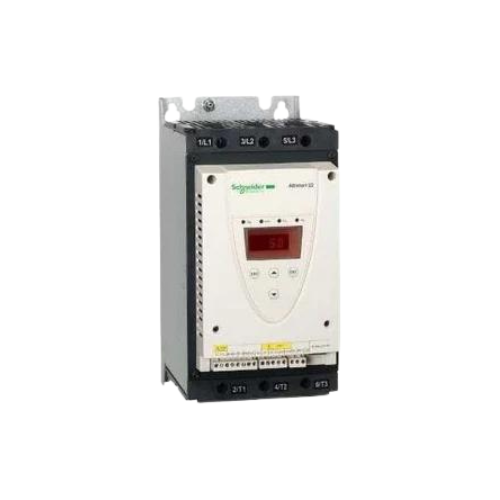

The ATS22D88Q Soft Starter from Schneider Electric is designed to protect your motors and improve operational efficiency. With a power range of 22kW at 230V and 45kW at 400V, this soft starter is perfect for asynchronous motors in industrial applications, such as pumps and fans. It is built to ensure smooth motor start-up and protect against potential damage due to electrical spikes or overloads.
Key Features
- Voltage Range: 230V to 440V, 3-phase
- Motor Power: 22kW (230V) and 45kW (400V)
- IP Protection: IP20
- Cooling Method: Forced convection
- Control Protocol: Modbus communication
- Internal Bypass: Available for efficient operation
Technical Specifications
| Specification | Details |
|---|---|
| Supply Voltage | 195V to 484V |
| Motor Power Range | 15–50 kW |
| Control Circuit Voltage | 230V AC, 50/60Hz |
| Thermal Protection | Motor and starter thermal protection |
| Protection Type | Phase failure, motor thermal protection |
| Dimensions | Height: 295 mm, Width: 145 mm, Depth: 207 mm |
Applications
Ideal for industrial applications such as pumps and fans, the ATS22D88Q is perfect for environments requiring smooth motor start-up, energy efficiency, and comprehensive motor protection.
Certifications
Compliant with global standards and certifications, including CE, UL, CSA, and GOST. The ATS22D88Q ensures reliability and safety for all applications.
Warranty & Support
This product comes with an 18-month warranty, ensuring dependable performance and long-term reliability in your operations.
-
