Buy Mitsubishi QX42-S1 – Product Overview

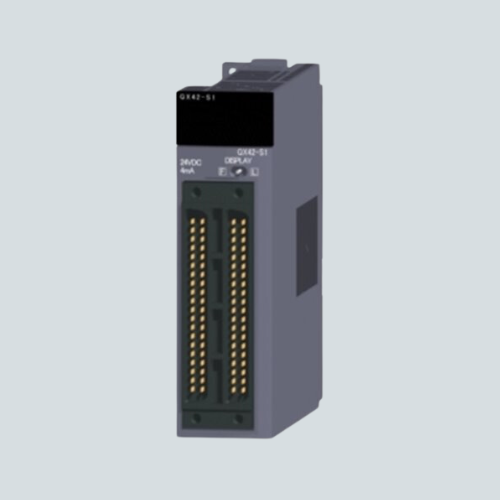

The Mitsubishi QX42-S1 is a professional-grade DC input module designed for the MELSEC-Q Series programmable logic controller (PLC) platform. This 64-point digital input unit operates on 24VDC and delivers reliable signal acquisition for industrial automation systems worldwide. Manufactured in Japan and built to OEM specifications, the QX42-S1 integrates seamlessly into existing PLC architectures, making it an essential component for process control, machine automation, and production line systems across North America, Europe, Asia, and beyond.

Mitsubishi QX42-S1 Features & Benefits

The QX42-S1 delivers 64 integrated digital inputs with a rated input current of 4mA at 24VDC. Key features include photocoupler isolation for signal integrity, ON/OFF LED indication for quick diagnostics, and a response time as fast as 0.1ms for time-critical applications. The module occupies 64 I/O points on the PLC, supports 32-point 1-common configuration, and connects via a standard 40-pin connector (A6CON series). Internal current consumption is minimal at 75mA typical, and the compact design measures 27.4mm (width) × 98mm (height) × 90mm (depth), weighing just 0.141kg. This export-ready automation component is non-EU sourced and manufactured in Japan, ensuring authenticity and global compatibility.

Mitsubishi QX42-S1 Specifications & Datasheet

Access the official Mitsubishi QX42-S1 specifications to ensure compatibility before installation. The module features a 24VDC rated input voltage (±20%/−15%, ripple ratio within 5%), photocoupler isolation method, and maximum 64-point simultaneous input capability. The 40-pin connector accepts wire sizes of 0.3mm² and supports terminal conversion modules (A6TBXY36, A6TBXY54, A6TBX70). Planned delivery time averages 94 days, with sales launch dating back to December 17, 2002. Full CAD drawings, technical bulletins, and user manuals are available from the Mitsubishi Electric specification database.

Mitsubishi QX42-S1 Applications in Industrial Automation

This 64-point input module is commonly deployed in factory control panels, process automation systems, sensor input acquisition, and high-speed machine control worldwide. Engineers rely on the QX42-S1 for switch and sensor monitoring, temperature/weight/flow sensing integration, and precision positioning control applications requiring rapid response times.

Mitsubishi QX42-S1 Price & Worldwide Availability

Check Mitsubishi QX42-S1 pricing and real-time stock status online. LeadTime.ca is a trusted supplier in Canada and the United States, offering this genuine OEM component with fast worldwide shipping to Europe, Asia, and global industrial markets. Request a quote today for bulk orders and export pricing.

Why Buy Mitsubishi Products from LeadTime.ca

Every product on LeadTime.ca is genuine, authentic OEM, factory-tested, and sourced from verified suppliers. As a worldwide industrial parts distributor, we guarantee original Mitsubishi components backed by fast international dispatch and competitive global shipping rates.
