QD70P8
QD70P8
Manufacturer: MITSUBISHI
Condition: New and Unused, Surplus.

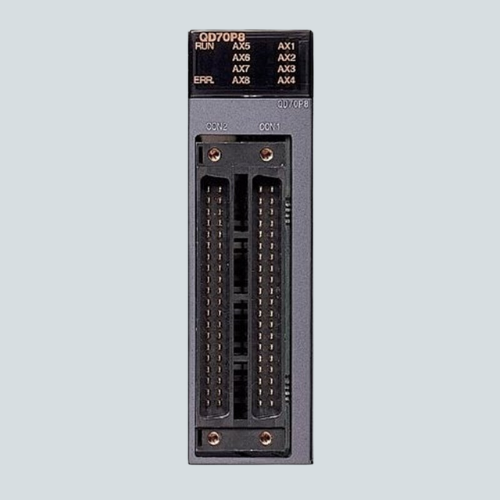

Overview of Mitsubishi QD70P8
The Mitsubishi QD70P8 is an 8-axis positioning module from the MELSEC-Q Series. It uses pulse output control with point-to-point (PTP) and linear path control for precise motion management. Designed for high-speed and accurate industrial automation, it supports incremental and absolute positioning with fast acceleration/deceleration handling.
Key Features of Mitsubishi QD70P8
- 8-Axis Control: Allows simultaneous control of up to 8 axes for complex automation tasks.
- Control Methods: Supports PTP, linear path control, and speed-position switching.
- Positioning Data: Stores 10 data points per axis for detailed motion control.
- Pulse Output: Uses open collector type output suitable for industrial drives.
- Wide Positioning Range: Supports from -2,147,483,648 to 2,147,483,647 pulses.
- Trapezoidal Acceleration/Deceleration: Smooth motion start and stop with configurable times up to 32,767 ms.
- Compact Design: Dimensions of 27.4mm (W) x 98mm (H) x 90mm (D) and lightweight 0.17 kg.
- Power Supply: 24 V DC with low current consumption of 0.74 A.
- Compliance: Meets CE, UL/cUL, and UKCA standards.
Technical Specs of Mitsubishi QD70P8
| Specification | Details |
|---|---|
| Number of Control Axes | 8 |
| Control Method | PTP, Path Control (linear), Speed-Position Switching |
| Positioning Data | 10 data/axis |
| Positioning Range (pulses) | -2,147,483,648 to 2,147,483,647 |
| Speed Command | 0 to 200,000 pulse/s |
| Acceleration/Deceleration Time | 0 to 32,767 ms (trapezoidal) |
| Pulse Output Type | Open collector |
| Power Supply | 24 V DC |
| Current Consumption | 0.74 A |
| Dimensions (W x H x D) | 27.4 x 98 x 90 mm |
| Weight | 0.17 kg |
| Compliance | CE, UL/cUL, UKCA |
Applications / Use Case
The Mitsubishi QD70P8 module is ideal for factory automation requiring multi-axis motion control, such as CNC machines, robotic arms, and assembly lines. It enables precise and coordinated positioning to optimize production efficiency.
Mitsubishi's engineering ensures durability and accuracy for demanding industrial environments.
