Q64RD
Q64RD
Manufacturer: MITSUBISHI
Condition: New and Unused, Surplus.

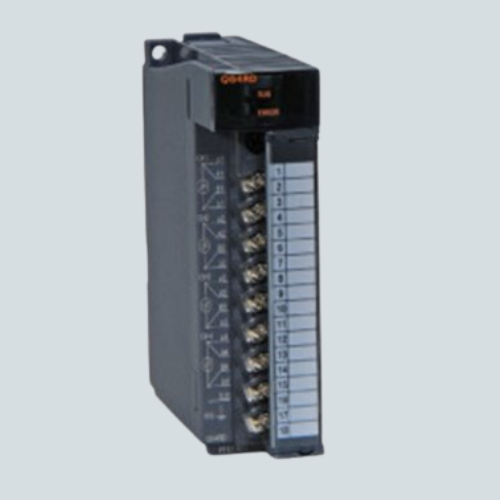

Overview of Mitsubishi Q64RD
The Mitsubishi Q64RD is a temperature input module designed for the MELSEC-Q series PLCs. It features 4 integrated analog RTD inputs compatible with PT100 and JPT100 sensors, providing precise temperature measurement for industrial automation. The module supports real-time temperature data acquisition with high accuracy and noise-resistant signal processing.
Key Features of Mitsubishi Q64RD
- 4 Analog RTD Inputs: Measures temperature using PT100 and JPT100 sensors.
- High Accuracy: ±0.08% accuracy at 25°C ensuring reliable thermal data.
- 16 Occupied I/O Points: Efficient integration into MELSEC-Q PLC systems.
- Isolation: Photocoupler isolation for input power and independent channel disconnection detection.
- Fast Conversion Speed: 40 ms per channel for timely temperature updates.
- Compact Size: 98 mm height, 27.4 mm width, 90 mm depth for easy installation.
- Low Power Consumption: Internal current consumption of 0.6 A.
- Durable Design: Industrial-grade build weighing 0.17 kg.
Technical Specs of Mitsubishi Q64RD
| Specification | Details |
|---|---|
| Channels | 4 RTD Inputs |
| Supported Sensors | PT100, JPT100 |
| Occupied I/O Points | 16 |
| Accuracy | ±0.08% at 25°C |
| Resolution | 0.025 °C |
| Conversion Speed | 40 ms/channel |
| Isolation Method | Optocoupler isolation input to power supply |
| Disconnection Detection | Available per channel |
| Dimensions (HxWxD) | 98 x 27.4 x 90 mm |
| Weight | 0.17 kg |
| Current Consumption | 0.6 A (5V DC) |
Applications / Use Case
The Mitsubishi Q64RD module is suited for temperature monitoring in manufacturing processes, HVAC systems, and any automated environment requiring precise thermal feedback. It integrates with MELSEC-Q PLCs to deliver real-time temperature control and monitoring.
Mitsubishi's quality standards ensure reliable long-term operation in industrial settings.
