HG-SR52B
HG-SR52B
Manufacturer: MITSUBISHI
Condition: New and Unused, Surplus.

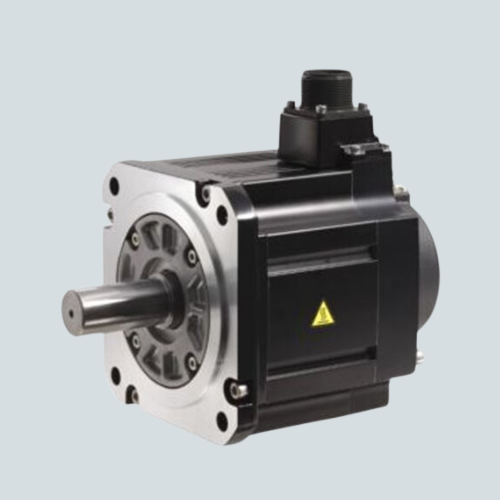

Overview of Mitsubishi HG-SR52B Servo Motor
The Mitsubishi HG-SR52B AC brushless rotary servo motor delivers 0.5 kW power with a rated torque of 2.4 Nm. It operates at 2000 RPM rated speed and supports peak torque up to 7.2 Nm. This medium inertia servo motor features a straight shaft, built-in electromagnetic brake, and a high-resolution 22-bit absolute encoder for accurate position feedback and control.
Key Features of Mitsubishi HG-SR52B Servo Motor
- Rated Power of 0.5 kW – Suitable for moderate power applications.
- Rated Torque of 2.4 Nm with 7.2 Nm Peak Torque – Provides strong and consistent motor output.
- Rated Speed 2000 RPM, Max Speed 3000 RPM – Delivers reliable and fast rotational performance.
- Built-in Electromagnetic Brake – Ensures controlled stopping and enhances safety.
- 22-Bit Absolute Encoder – High precision position feedback improving control accuracy.
- IP67 Protection – Suitable for harsh industrial environments with dust and water resistance.
Technical Specs of Mitsubishi HG-SR52B Servo Motor
| Parameter | Specification |
|---|---|
| Rated Power | 0.5 kW |
| Rated Torque | 2.4 Nm |
| Maximum Torque | 7.2 Nm |
| Rated Speed | 2000 RPM |
| Maximum Speed | 3000 RPM |
| Voltage | 200 V AC |
| Shaft Type | Straight Shaft |
| Brake | Electromagnetic, built-in |
| Encoder Type | 22-bit Absolute Encoder |
| Protection Class | IP67 |
| Inertia | Medium |
| Weight | 6.7 kg |
| Dimensions (W×H×D) | 130 mm × 177.5 mm × 208 mm |
Applications / Use Case
The HG-SR52B servo motor is ideal for industrial automation including robotics, machine tools, and packaging machinery where precise, reliable motion control with moderate power is required.
Mitsubishi Electric supports this motor with a strong global service network and warranty for dependable operation.
