Overview of Mitsubishi GT2510-VTBA Human Machine Interface (HMI)

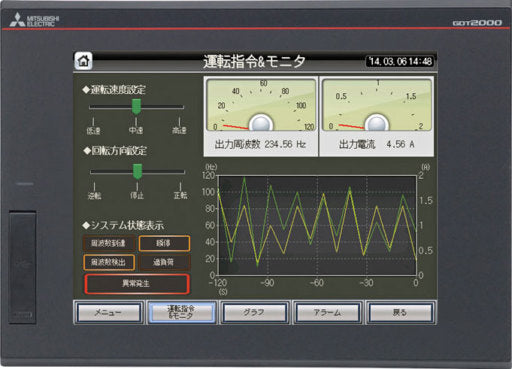

The Mitsubishi GT2510-VTBA is a mid-range industrial HMI from the GOT2000 series featuring a 10.4-inch VGA (640x480 pixels) TFT color touchscreen. It supports a wide power supply range of 100 to 240 VAC and is designed for robust performance in factory automation applications. The HMI offers intuitive navigation, real-time monitoring, and high reliability with comprehensive connectivity options.

Key Features

  • 10.4-inch VGA color TFT touchscreen with 65,536 colors for clear visualization.
  • Wide power supply range: 100 to 240 VAC, 50/60 Hz for versatile industrial use.
  • Bright LED backlight with 32-level brightness adjustment and approx. 60,000 hours backlight life.
  • Multi-channel communication interfaces including RS-232, RS-422/485, Ethernet, and USB ports.
  • Support for various industrial networks such as CC-LINK, MODBUS, PROFIBUS, MELSECNET.
  • Memory: 32 MB ROM for storage, 80 MB RAM for operation with high write endurance for programs.
  • Durability with IP67F front protection and IP2X inside panel protection.
  • Built-in clock with ±90 seconds/month accuracy and lithium battery backup for SRAM data integrity.
  • Sound output interface and adjustable buzzer tone duration and pitch for alert notifications.
  • Compact dimensions: 303 mm (W) x 218 mm (H) x 52 mm (D), weight approx. 2.1 kg.

Technical Specs

Specification Details
Model GT2510-VTBA
Display Size 10.4 inches
Resolution 640 x 480 pixels (VGA)
Display Colors 65,536 (16-bit color)
Power Supply 100-240 VAC ±10%, 50/60 Hz
Communication 1x RS-232, 1x RS-422/485, 1x Ethernet, 3x USB (host/device)
Memory 32 MB ROM, 80 MB RAM
Touch Panel Analog resistive film type
Front Protection IP67F
Operating Temperature 0 °C to 50 °C
Dimensions (W x H x D) 303 mm x 218 mm x 52 mm
Weight 2.1 kg

Applications / Use Case

Designed for use in industrial automation environments for machine control, process visualization, and operator interface tasks. It supports integration into diverse networks for efficient data exchange and visualization in manufacturing systems, process plants, and factory automation.

The GT2510-VTBA provides reliable, clear display, extensive communication, and robust construction for demanding industrial use.
