Buy Mitsubishi FX5-8AD – Product Overview

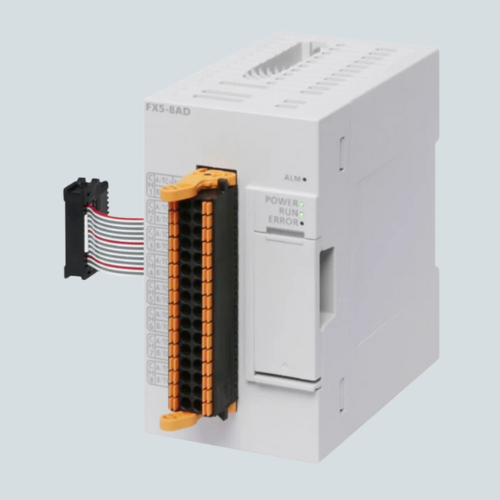

The Mitsubishi FX5-8AD is an 8-channel analog input module designed for the MELSEC iQ-F FX5 series of programmable logic controllers. This multiple input module converts 8 points of analog input values—including voltage input, current input, thermocouple, and resistance temperature detector signals—into precise digital values for industrial automation and process control applications. With spring clamp terminal blocks, the FX5-8AD delivers simple wiring, increased vibration resistance, and a compact footprint ideal for control panel integration. Compatible with FX5U, FX5UC, and FX5UJ CPU modules, this genuine Mitsubishi component is a trusted choice for manufacturers and integrators worldwide.

Mitsubishi FX5-8AD Features & Benefits

  • 8 analog input channels with selectable voltage or current modes
  • Voltage input range: ±10V and 0–10V options
  • Current input range: 4–20mA and 0–20mA
  • 16-bit resolution A/D conversion for high-precision signal capture
  • Spring clamp terminal block for secure, vibration-resistant connections
  • Compact design reduces control panel space requirements
  • Support for thermocouple and RTD inputs across multiple temperature ranges
  • Absolute maximum input tolerance: 15V voltage, 30mA current

Mitsubishi FX5-8AD Specifications & Datasheet

The FX5-8AD offers 16-bit signed binary digital output with accuracy within 0.3% at ambient temperatures of 25°C and within 0.5% across the operating range of -20°C to +55°C. Input response time is configurable, and the module integrates seamlessly with GX Works3 engineering software. Official datasheets and hardware manuals are available from Mitsubishi Electric, including the MELSEC iQ-F FX5 Analog Module User's Manual and the FX5-8AD Hardware Manual (version F, updated March 2025). These documents provide complete configuration details, terminal assignments, and installation specifications.

Mitsubishi FX5-8AD Applications in Industrial Automation

This module is commonly used in industrial automation, process control, machine automation, production line systems, and factory control panels worldwide. Applications include temperature monitoring via thermocouple or RTD inputs, voltage and current signal acquisition from sensors and instruments, and real-time data conversion for closed-loop control systems in manufacturing environments.

Mitsubishi FX5-8AD Price & Worldwide Availability

View Mitsubishi FX5-8AD pricing and real-time stock status for global dispatch. LeadTime.ca is a worldwide industrial parts distributor offering export-ready automation components with fast shipping across North America, Europe, Asia, and international markets. Request a quote today for bulk orders or custom delivery arrangements.

Why Buy Mitsubishi Products from LeadTime.ca

Every product on LeadTime.ca is genuine OEM, factory-tested, and sourced from verified suppliers. We specialize in authentic Mitsubishi automation components with fast worldwide shipping and comprehensive technical support to ensure compatibility and optimal system performance.
