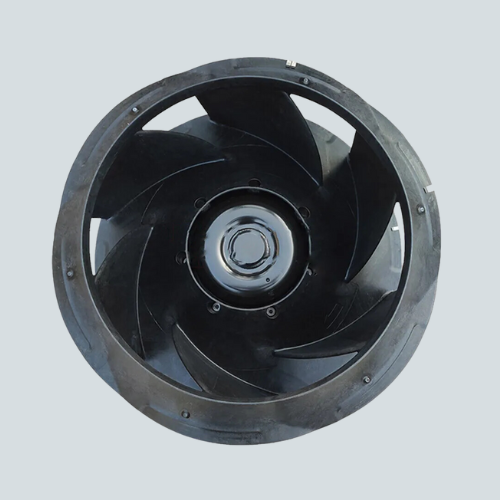

Overview of EBM-Papst R3G560-RA24-03 EC Centrifugal Fan

The EBM-Papst R3G560-RA24-03 is a high-capacity EC centrifugal fan designed for industrial ventilation and cooling applications. It operates at 400 VAC, 3-phase, with a motor size of 150 and a 560 mm diameter impeller. The fan offers an airflow of approximately 9920 m³/h and features advanced control electronics for energy-efficient and reliable operation.

Key Features of EBM-Papst R3G560-RA24-03 Fan

  • Voltage: 400 VAC, 3-phase, 50/60 Hz – Industrial power compatibility.
  • Airflow rate: 9920 m³/h – Suitable for large ventilation and cooling systems.
  • Speed: 1750 RPM – Ensures steady airflow with low noise (81 dB(A) max).
  • Motor size: 150 with advanced integrated electronics – Includes PID controller, alarm relay, MODBUS RTU, and soft start.
  • Impeller: Polypropylene (PP) plastic with 6 blades – High efficiency and durability.
  • Housing: Die-cast aluminum with painted black rotor surface – Robust and corrosion resistant.
  • Bearing system: Ball bearing – Provides long service life and stability.
  • Degree of protection: IP55 – Dust and water resistant for harsh environments.
  • Advanced monitoring: Voltage output, current limit, thermal overload protection, undervoltage/phase failure detection.

Technical Specs

Specification Details
Model Number R3G560-RA24-03
Voltage 400 VAC, 3-phase (380-480 VAC range)
Airflow 9920 m³/h
Speed 1750 RPM
Power Input 3500 W
Noise Level 81 dB(A) max
Bearing Type Ball bearing
Impeller Diameter 560 mm
Protection Class IP55
Operating Temperature Range -40°C to +80°C (start-up allowed to -25°C)
Weight 21.6 kg

Applications / Use Case

This fan is well-suited for heavy-duty industrial cooling, HVAC systems, and air handling units where strong airflow and energy efficiency are required. Its integrated electronics allow precise control and monitoring, optimizing performance in critical environments.

EBM-Papst offers full warranty and support services to maintain high reliability and customer satisfaction.
