R3G560-AH23-01
R3G560-AH23-01
Manufacturer: EBM-PAPST
Condition: New and Unused, Surplus.

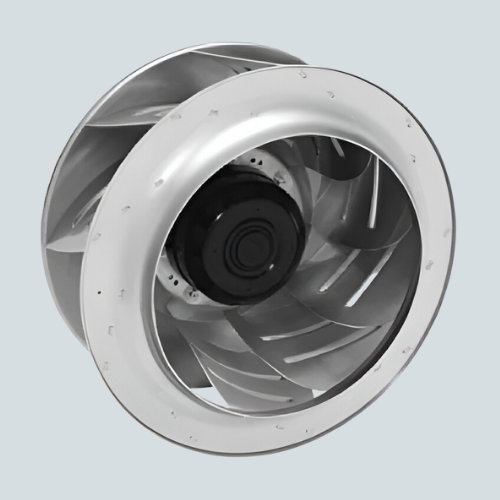

Overview of EBM-Papst R3G560-AH23-01 EC Centrifugal Fan
The EBM-Papst R3G560-AH23-01 is a high-capacity, energy-efficient EC centrifugal fan designed for industrial ventilation and cooling applications. It operates at 400 VAC (3-phase) with a speed of approximately 1520 RPM and delivers an airflow of up to 8760 m³/h. This fan features a large 560 mm impeller, die-cast aluminum housing, and ball bearing motor for extended service life.
Key Features of EBM-Papst R3G560-AH23-01 Fan
- Operating voltage: 400 VAC, 3-phase, 50/60 Hz – Standard for industrial power systems.
- High airflow: 8760 m³/h – Suitable for large ventilation and cooling requirements.
- Speed: 1520 RPM – Provides stable and consistent airflow.
- Power consumption: 3000 W – Delivers strong cooling capacity.
- Ball bearing motor – Enhances reliability and reduces maintenance frequency.
- Durable die-cast aluminum housing and sheet aluminum impeller – Ensures corrosion resistance and sturdy construction.
- IP55 protection rating – Protects against dust and water ingress.
- Integrated advanced control options – Includes RS485 MODBUS RTU, PID controller, alarm relay, motor current limit, and temperature sensors.
- Ambient operating temperature range: -25°C to +60°C – Suitable for challenging industrial environments.
Technical Specs
| Specification | Details |
|---|---|
| Model Number | R3G560-AH23-01 |
| Type | EC Centrifugal Fan |
| Voltage | 400 VAC, 3-phase (380-480 VAC range) |
| Airflow | 8760 m³/h |
| Speed | 1520 RPM |
| Power Consumption | 3000 W |
| Bearing Type | Ball bearing |
| Impeller Diameter | 560 mm |
| Housing Material | Die-cast aluminum |
| Protection Rating | IP55 |
| Operating Temperature | -25°C to +60°C |
| Weight | 28.4 kg |
Applications / Use Case
The EBM-Papst R3G560-AH23-01 fan is ideal for large-scale industrial ventilation, HVAC systems, and machinery cooling. Its high airflow, energy-efficient motor, and advanced controls ensure reliable and cost-effective operation in demanding environments.
EBM-Papst provides comprehensive technical support and warranty services for sustained fan performance.
