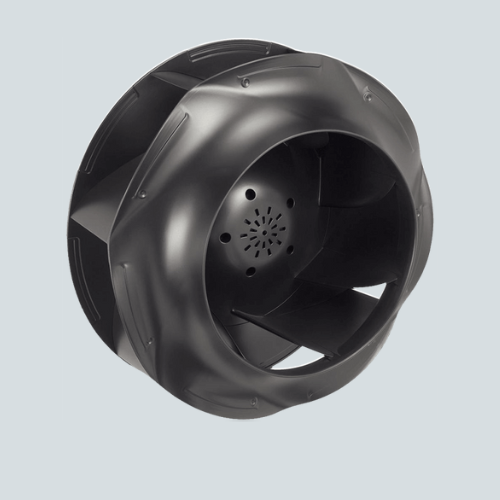

Overview of EBM-Papst K3G310-BE90-N1 AC Centrifugal Fan

The EBM-Papst K3G310-BE90-N1 is a powerful 3-phase AC centrifugal fan designed for industrial cooling and ventilation applications. Operating at 400 VAC with a speed of 2900 RPM, this fan delivers an airflow rate of approximately 3005 m³/h. It features a robust die-cast aluminum housing, a ball bearing motor, and a 310 mm diameter with high durability and performance.

Key Features of EBM-Papst K3G310-BE90-N1 Fan

  • Voltage: 400 VAC, 3-phase, 50/60 Hz – Suitable for heavy-duty industrial power systems.
  • Airflow: Approximately 3005 m³/h – Provides high-efficiency cooling.
  • Speed: 2900 RPM – Ensures steady and reliable operation.
  • Motor Type: Ball bearing with internal thermal protection – Enhances longevity and safety.
  • Housing: Die-cast aluminum – Durable and corrosion-resistant.
  • Impeller: Sheet aluminum with 7 blades – Optimized for high pressure and airflow.
  • Protection Class: IP55 – Suitable for challenging environmental conditions.
  • Integrated control features – Includes PID control, power limiter, run monitoring, and MODBUS RTU interface for advanced operation.

Technical Specs

Specification Details
Model Number K3G310-BE90-N1
Voltage 400 VAC, 3-phase
Frequency 50/60 Hz
Speed 2900 RPM
Airflow ~3005 m³/h
Power Consumption 1300 W
Bearing Type Ball bearing
Housing Material Die-cast aluminum
Impeller Material Sheet aluminum
Size 310 mm diameter
Protection Class IP55
Weight Approx. 15 kg

Applications / Use Case

The K3G310-BE90-N1 centrifugal fan is ideal for industrial equipment cooling, such as servo spindle motors and large machinery requiring robust and efficient ventilation. Its advanced control features and rugged design ensure optimal performance in harsh operational settings.

EBM-Papst provides warranty and technical support to ensure reliability and long-term performance.
