Overview of Allen Bradley VPL-B1003F-CJ14AA

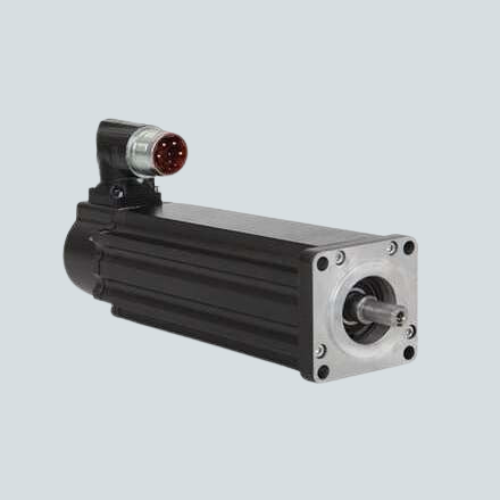

The Allen Bradley VPL-B1003F-CJ14AA is a high-performance low inertia servo motor designed for precise motion control applications. Operating at 480V AC, this motor features a 100mm bolt circle frame size and utilizes three magnet stacks with an F winding configuration, enabling a rated speed of 4500 RPM. It is equipped with an 18-bit single-turn digital high-resolution encoder for accurate position feedback. The VPL-B1003F-CJ14AA includes a 24V DC holding brake and a keyed shaft for secure coupling, making it ideal for demanding industrial automation environments. Its IEC metric mounting flange and SpeedTec right-angle DIN connector ensure straightforward integration with Allen Bradley's control systems, specifically supporting Kinetix servo drives.

Key Features of Allen Bradley VPL-B1003F-CJ14AA

  • Low inertia design for fast dynamic response and precise control.
  • 480V AC voltage class suitable for industrial power systems.
  • 100mm bolt circle frame size with IEC metric mounting flange.
  • Three magnet stacks with F winding for optimal torque and speed balance.
  • Rated speed of 4500 RPM enabling high-speed applications.
  • 18-bit single-turn digital high-resolution encoder (Hiperface DSL protocol) for exact position feedback.
  • 24V DC holding brake to maintain position during power loss.
  • Keyed shaft for secure mechanical coupling.
  • SpeedTec right-angle DIN connector for reliable electrical connections.
  • Compatible with Allen Bradley Kinetix servo drives and control systems.

Technical Specs of VPL-B1003F-CJ14AA

Specification Details
Voltage 480V AC
Frame Size 100mm Bolt Circle
Magnet Stacks 3 (Three)
Winding F Winding
Rated Speed 4500 RPM
Encoder 18-bit Single-turn Digital High Resolution (Hiperface DSL)
Shaft Type Keyed Shaft
Brake 24V DC Holding Brake
Connector SpeedTec Right Angle DIN Connector
Mounting IEC Metric Mounting Flange

Applications / Use Case

The Allen Bradley VPL-B1003F-CJ14AA servo motor is tailored for high-speed, high-precision industrial automation tasks. Its low inertia design makes it suitable for robotics, CNC machinery, packaging equipment, and automated assembly lines where rapid acceleration and deceleration cycles are critical. The integrated high-resolution encoder and holding brake enhance positioning accuracy and safety during stops or power failures. This servo motor also pairs seamlessly with Allen Bradley Kinetix servo drives, offering reliable and synchronized motion control for manufacturing processes needing repeatability and durability. Its robust construction supports continuous operation in demanding environments where precision and responsiveness are essential.
