Overview of Allen Bradley VPL-B1002E-CJ12AA

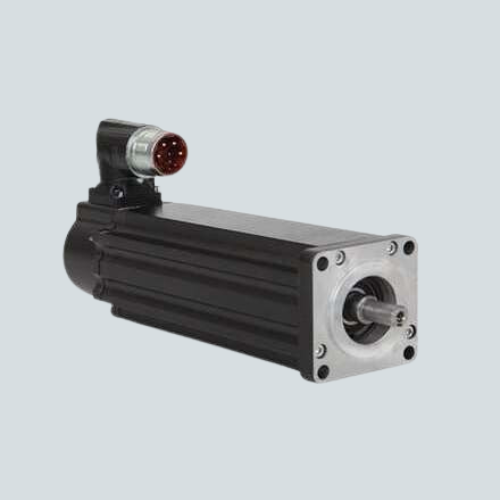

The Allen Bradley VPL-B1002E-CJ12AA is a Kinetix VP Low Inertia Servo Motor engineered for precise motion control in demanding industrial automation environments. It features a 100mm bolt circle frame, two magnet stacks, and operates at a voltage class of 480V AC with an E winding configuration optimized for a rated speed of 3500 RPM. This motor includes an 18-bit single-turn digital high-resolution encoder for accurate position feedback, making it ideal for applications requiring tight control and responsiveness. Equipped with a keyed shaft and a single SpeedTec DIN connector, the VPL-B1002E-CJ12AA is designed without a holding brake, providing a streamlined solution for compact servo systems and enhancing dynamic performance.

Key Features of Allen Bradley VPL-B1002E-CJ12AA

  • Low inertia design improves acceleration and deceleration response times
  • IEC Metric mounting flange for straightforward installation and compatibility
  • 18-bit single-turn absolute digital encoder for high precision positioning
  • Two magnet stacks providing enhanced torque and performance
  • Keyed shaft for secure coupling and minimized slip
  • Single SpeedTec right-angle DIN connector for reliable connection and easy integration
  • Rated speed of 3500 RPM suitable for a wide range of automation needs
  • Designed for 480V AC operation with an E winding configuration
  • Compliance with standards including C-TICK, CE, CUL, and UL for global use
  • No holding brake included, reducing weight and complexity where braking is not required

Technical Specs of VPL-B1002E-CJ12AA

Specification Details
Frame Size 100 mm Bolt Circle
Voltage 480V AC
Rated Speed 3500 RPM
Magnet Stacks 2 (Two)
Encoder 18-bit single-turn digital high resolution
Shaft Keyed shaft
Connector Single SpeedTec Din, right-angle
Mounting IEC Metric Mounting Flange
Brake No holding brake
Weight Approximately 4.58 kg

Applications / Use Case

The Allen Bradley VPL-B1002E-CJ12AA servo motor is well suited for high-performance industrial automation tasks requiring precise speed and position control. It is commonly used in packaging machinery, robotics, CNC equipment, and assembly lines where fast, accurate response and reliability are critical. The motor's low inertia design allows it to accelerate and decelerate quickly without overshoot, enhancing system efficiency in processes with frequent starts and stops. The robust encoder feedback system ensures exact positioning, making it ideal for feedback control loops. Its IEC mounting flange and standardized connectors simplify installation and replacement in existing Kinetix servo systems, supporting industries such as automotive manufacturing, material handling, and semiconductor fabrication.
