Overview of Allen Bradley Kinetix VPL-B0632F-CJ12AA

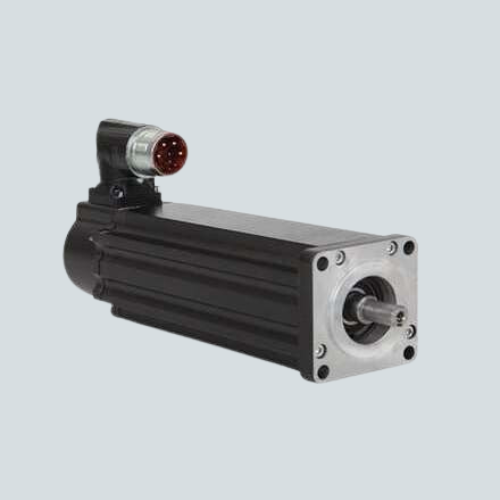

The Allen Bradley Kinetix VPL-B0632F-CJ12AA is a high-performance, low inertia servo motor engineered for dynamic motion control in industrial automation. It features a compact 63 mm bolt circle frame with an IEC metric mounting flange, making it suitable for integration into space-constrained machine designs. Rated for 480 V AC operation, this motor delivers up to 4500 RPM and 0.37 kW of maximum output power. Its low-inertia rotor design ensures rapid acceleration and deceleration, ideal for applications requiring precise, responsive positioning. The motor is equipped with a single-turn, high-resolution digital encoder and supports HiperFace DSL/SSI feedback protocols for accurate motion tracking. Optimized for use with Rockwell Automation Kinetix 5500 and 5700 servo drives, the VPL-B0632F-CJ12AA offers a reliable solution for demanding automation tasks.

Key Features of Allen Bradley Kinetix VPL-B0632F-CJ12AA

  • Compact 63 mm bolt circle frame with IEC metric mounting flange
  • Low inertia rotor for fast, responsive motion
  • 480 V AC voltage rating for broad industrial compatibility
  • Up to 4500 RPM rated speed for high-speed applications
  • 0.37 kW maximum power output
  • Single-turn, high-resolution 18-bit digital encoder
  • HiperFace DSL/SSI feedback protocol support
  • Keyed shaft for secure mechanical coupling
  • SpeedTec DIN connector for simplified wiring
  • IP50 degree of protection against dust and limited moisture ingress

Technical Specs of Kinetix VPL-B0632F-CJ12AA

Parameter Specification
Rated Voltage 480 V AC
Frame Size 63 mm Bolt Circle
Rated Speed 4500 RPM
Maximum Power 0.37 kW
Rated Torque 2.69 Nm
Encoder Type 18-bit Single-turn Digital (HiperFace DSL/SSI)
Shaft Keyed
Connector SpeedTec DIN
Mounting IEC Metric Flange
Protection IP50
Operating Temp. 0 to 40 °C
Weight 1.36 kg

Applications / Use Case

The Allen Bradley Kinetix VPL-B0632F-CJ12AA is designed for applications where precise, rapid, and repeatable motion is essential. Typical uses include robotics, packaging machinery, material handling, CNC systems, and automated assembly lines. The motor’s low inertia and high dynamic response are critical for pick-and-place operations, conveyor systems, and operations requiring frequent starts and stops. Compatibility with Kinetix 5500 and 5700 servo drives allows seamless integration into modern EtherNet/IP-based motion control architectures, supporting high-speed synchronization and distributed control. The compact form factor and robust construction ensure reliable operation in industrial environments with moderate dust exposure.
