MPL-B580J-MJ72AA

In Stock
$4,403.20
$4,403.20
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Overview

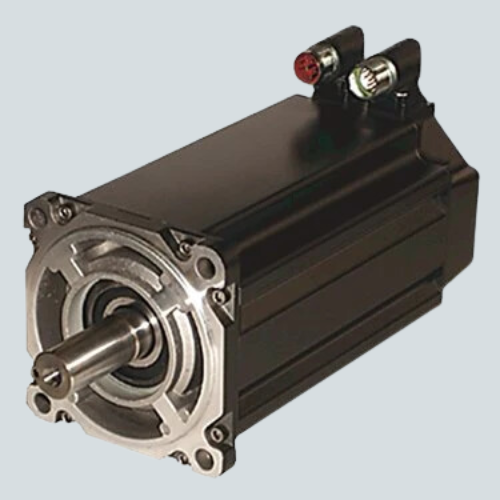

The Allen-Bradley MPL-B580J-MJ72AA is a 460 VAC brushless low-inertia servo motor from the MP-Series, featuring a 165 mm frame size. It operates at 3750 RPM and provides high-performance motion control for demanding industrial automation applications. The motor includes a multi-turn high-resolution absolute encoder for precise feedback, a keyed shaft extension for secure mounting, and a SpeedTEC DIN right-angle rotatable connector for flexible installation.

Key Features

  • 165 mm frame size – Medium-to-large motor size suitable for a variety of applications.
  • 460 VAC rated voltage – Standard industrial power supply compatibility.
  • Low-inertia brushless design – Quickly responsive for dynamic motion control.
  • 3750 RPM rated speed – Supports high-speed operation for efficient cycles.
  • Multi-turn absolute encoder – High-resolution position feedback for accuracy.
  • Keyed shaft extension – Ensures durable and precise mechanical coupling.
  • SpeedTEC DIN connector – Right-angle, 180° rotatable for ease of wiring and maintenance.
  • No integrated brake – Allows for applications where brake is externally managed.
  • IEC metric mounting with free mounting holes (Type FF) – Simplifies machine integration.

Technical Specs

Specification Details
Type Low-inertia brushless servo motor
Frame Size 165 mm (6.5 in)
Voltage 460 VAC
Rated Speed 3750 RPM
Encoder Multi-turn high-resolution absolute
Shaft Keyed extension
Connector SpeedTEC DIN right-angle, 180° rotatable
Brake No
Mounting IEC metric, free mounting holes (Type FF)
Operating Temperature 0 to 40 °C
Protection Rating IP50 minimum, up to IP66 with shaft seal and sealed cable connectors

Applications / Use Case

The MPL-B580J-MJ72AA is suited for advanced industrial motion control tasks, including robotics, packaging, and automated manufacturing systems requiring precise position control and high torque. Its flexible wiring and keyed shaft make it easy to fit into complex machine designs.

Allen-Bradley ensures the motor meets global industrial standards, providing dependable and stable performance under demanding conditions.
