Buy Allen-Bradley MPL-B540K-MJ72AA – Product Overview

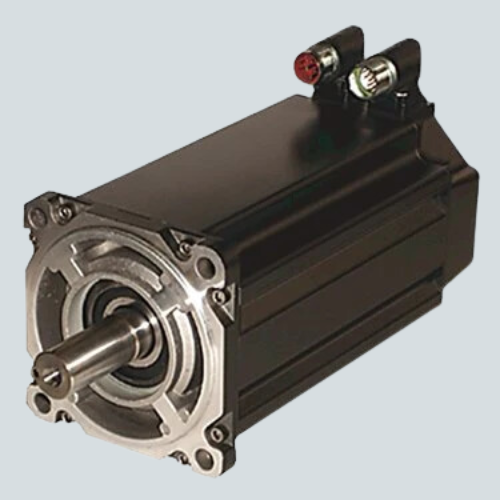

The Allen-Bradley MPL-B540K-MJ72AA is a low-inertia brushless servo motor engineered for precision motion control in demanding industrial automation applications. This 460V AC rotary servo motor delivers 4000 RPM with a continuous stall torque of 19.4 Nm, making it ideal for machine tool drives, packaging systems, and factory automation panels. Built to IEC metric standards with a compact 165 mm frame size, this motor combines reliability with high-performance dynamic response. With multi-turn high-resolution absolute encoder feedback and SpeedTEC DIN connectors, it integrates seamlessly into Kinetix control systems. Available from LeadTime.ca, a trusted worldwide industrial parts distributor serving North America, Europe, and Asia.
Allen-Bradley MPL-B540K-MJ72AA Features & Benefits
- Low-inertia brushless AC synchronous servo motor for rapid acceleration and smooth performance
- 4000 RPM rated speed with 19.4 Nm continuous and 48.6 Nm peak torque output
- Multi-turn absolute encoder (1024 cycles/rev) with HiperFace protocol feedback
- 180° rotatable SpeedTEC DIN connectors for flexible installation and quick connect operation
- IP50 standard rating, upgradeable to IP66 with optional shaft seal for harsh environments
- Keyed shaft extension with field-reversible motor connectors for simplified commissioning
- High-energy rare-earth magnets for superior torque density and efficiency
- Operating temperature range: 0°C to 70°C; storage to -30°C
Allen-Bradley MPL-B540K-MJ72AA Specifications & Datasheet
| Parameter | Value |
|---|---|
| Model | MPL-B540K-MJ72AA |
| Voltage Rating | 460V AC (400V compatible) |
| Frame Size | 5 (165 mm / 6.50 in.) |
| Stack Length | 40 (101.6 mm / 4.0 in.) |
| Rated Speed | 4000 RPM |
| Continuous Torque | 19.4 Nm (172 lb-in.) |
| Peak Torque | 48.6 Nm (430 lb-in.) |
| Feedback | Multi-turn absolute encoder, HiperFace |
| Connectors | SpeedTEC DIN (M7), 180° rotatable |
| Brake Option | None (integral 24V brake available) |
| Weight | 15 kg |
| IP Rating | IP50 standard; IP66 with seal |
| Mounting | IEC metric, free mounting holes (Type FF) |
Allen-Bradley MPL-B540K-MJ72AA Applications in Industrial Automation
This servo motor excels in precision motion control for factory automation, machine tool drives, packaging line systems, and production equipment requiring repeatable positioning. Common applications include CNC spindle drives, automatic assembly machines, robotic gantry systems, and industrial process control panels across North America and international markets. The low-inertia design enables rapid acceleration cycles, making it suitable for high-speed packaging, labeling, and material handling systems where cycle time is critical.
