Overview of Allen Bradley MPL-B4530K-MK74AA

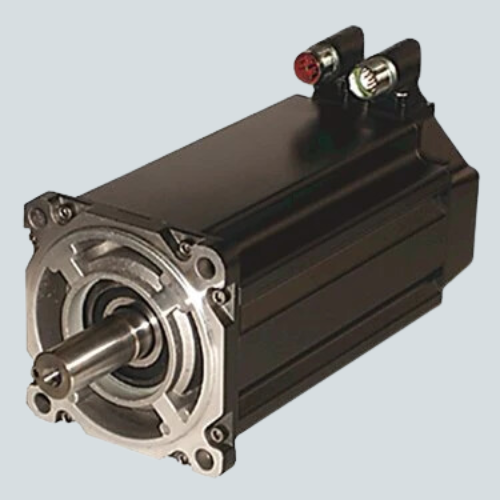

The Allen Bradley MPL-B4530K-MK74AA is a low-inertia brushless rotary servo motor from the MP-Series designed for precise motion control applications. Featuring a 130 mm frame size and a 76.2 mm magnet stack length, it operates at a rated speed of 4000 RPM. This 2 kW servo motor includes a multi-turn high-resolution encoder with absolute feedback, ensuring accurate positioning and smooth performance. The servo motor is equipped with a 24 Volt DC brake that holds the motor in place when stationary. Its IEC metric compliant flange mounting and right-angle rotatable DIN connector simplify installation and wiring. Rated for 460 V AC operation, the MPL-B4530K-MK74AA is suited for a range of demanding industrial environments where compact size and high dynamic response are essential.Key Features of Allen Bradley MPL-B4530K-MK74AA
- Low-inertia design for rapid acceleration and deceleration.
- 130 mm frame size with 76.2 mm magnet stack length.
- Precision multi-turn high-resolution encoder with absolute feedback for accurate motion control.
- Rated continuous power output of 2.6 kW at 4000 RPM.
- 24 V DC holding brake to maintain motor position when at rest.
- IEC metric flange mounting standard for easy integration.
- Right-angle, rotatable SpeedTEC DIN connector ensuring flexible wiring options.
- No shaft key or seal, simplifying shaft interface and maintenance.
- Compatible with Allen Bradley Kinetix drives including Kinetix 5500, 6200, 6500, 6000, and Ultra 3000 series.
- Designed for operating temperatures up to 40°C.
Technical Specs of MPL-B4530K-MK74AA
| Specification | Detail |
|---|---|
| Brand | Allen Bradley |
| Frame Size | 130 mm (5.12 in.) |
| Magnet Stack Length | 76.2 mm (3.0 in.) |
| Voltage Class | 460 V AC |
| Rated Speed | 4000 RPM |
| Continuous Output Power | 2.6 kW |
| Continuous Stall Torque | 8.25 Nm |
| Peak Stall Torque | 20.3 Nm |
| Feedback Type | Multi-turn High-Resolution Encoder (absolute feedback) |
| Brake | 24 V DC Holding Brake |
| Connector Type | Right-angle SpeedTEC DIN, 180° rotatable |
| Mounting | IEC metric flange (IEC 72-1) |
| Maximum Operating Temperature | 40 °C |
Applications / Use Case
The Allen Bradley MPL-B4530K-MK74AA servo motor is optimized for applications needing fast, accurate, and repeatable motion control. Common use cases include packaging machinery, material handling systems, electronics assembly automation, and metal forming equipment. Its low inertia and multi-turn absolute encoder make it well-suited for high-performance robotics and servo-driven automation tasks where precise positioning is critical. The built-in holding brake ensures the motor maintains its position during power loss or at rest, enhancing safety and reliability in manufacturing processes. Compatibility with Allen Bradley Kinetix drives ensures seamless integration in factory automation environments.Related Resources
-
