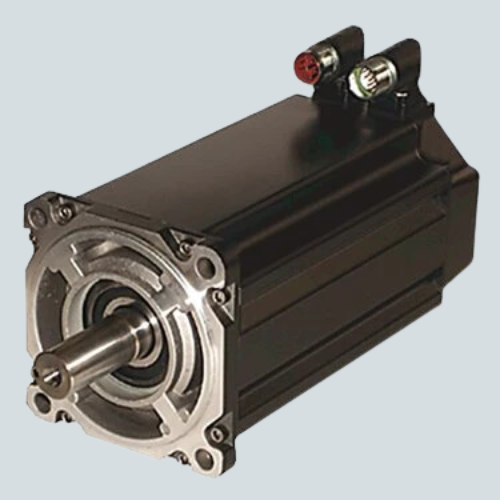

Overview of Allen-Bradley MPL-B4530K-MJ72AA Low Inertia Brushless Servo Motor

The Allen-Bradley MPL-B4530K-MJ72AA is a low-inertia, brushless AC servo motor from the MP-Series, designed for high-performance motion control applications. It operates with a 460V power supply, has a frame size of 130 mm (5.12 inches), and a magnet stack length of 76.2 mm (3.0 inches). The motor has a rated speed of 4000 RPM and features multi-turn high-resolution absolute feedback with a keyed shaft extension and SpeedTEC DIN connector.

Key Features of Allen-Bradley - MPL-B4530K-MJ72AA

  • Power Rating: 2.6 kW continuous output power.
  • Rated Speed: 4000 RPM for high-speed applications.
  • Torque: Continuous stall torque of 8.25 Nm and peak torque of 20.3 Nm.
  • Feedback: Multi-turn high-resolution absolute encoder for accurate position feedback.
  • Connector: SpeedTEC DIN, right angle, 180° rotatable quick connect for flexible wiring.
  • Shaft: Keyed shaft extension for secure mechanical coupling.
  • Housing: Robust and compact design suitable for industrial environments.
  • Operating Temperature: 0°C to 70°C.
  • Certifications: CE, cUL, KC, and UL approved.

Technical Specs of MPL-B4530K-MJ72AA

Model Number MPL-B4530K-MJ72AA
Frame Size 130 mm (5.12 in.)
Magnet Stack Length 76.2 mm (3.0 in.)
Power Supply 460 V AC
Rated Speed 4000 RPM
Continuous Stall Torque 8.25 Nm
Peak Torque 20.3 Nm
Encoder Multi-turn high-resolution absolute
Connector Type SpeedTEC DIN, right-angle, 180° rotatable
Shaft Extension Keyed
Operating Temperature 0°C to 70°C
Certifications CE, cUL, KC, UL

Applications / Use Case

The MPL-B4530K-MJ72AA is well-suited for precise and high-speed industrial motion control applications such as CNC machinery, robotics, and automated manufacturing processes requiring reliable performance and accurate positional feedback.
