Overview of Allen Bradley MPL-B1520U-VJ74AA

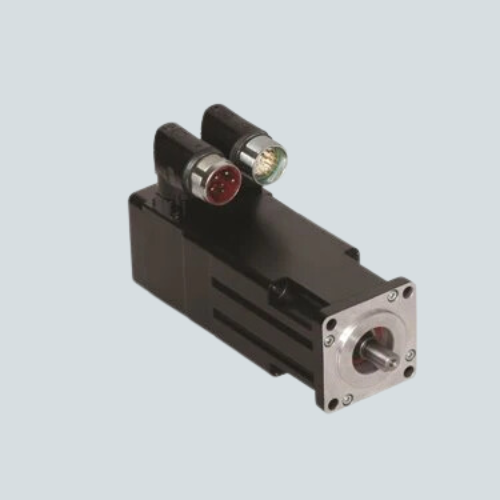

The Allen Bradley MPL-B1520U-VJ74AA is a premium low-inertia brushless permanent magnet servo motor engineered for high-performance motion control in industrial automation. Manufactured by Rockwell Automation, this motor is built for precision, offering a 63 mm frame size and a 20 (50.8 mm) magnet stack length. The MPL-B1520U-VJ74AA delivers up to 7,000 RPM and is compatible with 400/460 VAC power, making it suitable for demanding applications that require fast response times and smooth operation. Its free mounting holes (Type FF) and IEC metric flange provide flexible installation in compact machinery, while the multi-turn high-resolution absolute encoder ensures accurate positioning and repeatability. Designed for seamless integration with Allen Bradley servo drives and controllers, the MPL-B1520U-VJ74AA is a reliable choice for engineers who need advanced automation control.

Key Features of Allen Bradley MPL-B1520U-VJ74AA

  • Premium low-inertia design for rapid acceleration and deceleration
  • 400/460 VAC operation, 63 mm frame size, 20 magnet stack length
  • Rated speed of 7,000 RPM for high-speed applications
  • Integrated multi-turn high-resolution absolute encoder for precise feedback
  • Keyed shaft extension for secure coupling
  • Standard 24 VDC brake option for immediate stopping
  • SpeedTEC DIN connector, right angle, 180° rotatable for easy wiring
  • IEC metric mounting flange with Type FF free mounting holes
  • Compliant with CE, CUL, KC, and UL standards
  • Designed for direct integration with Allen Bradley servo systems

Technical Specs of MPL-B1520U-VJ74AA

Manufacturer Rockwell Automation / Allen Bradley
Product Type Bulletin MPL – Low-Inertia Brushless Servo Motor
Voltage 460 VAC
Frame Size 15 (63 mm)
Stack Length 20 (50.8 mm)
Rated Speed 7,000 RPM
Feedback Multi-turn high-resolution absolute encoder
Brake 24 VDC
Mounting IEC metric, Type FF free mounting holes
Certifications CE, CUL, KC, UL

Applications / Use Case

The Allen Bradley MPL-B1520U-VJ74AA is ideal for precise motion control in automation systems such as CNC machines, packaging lines, material handling, robotics, and high-speed production equipment. Its low-inertia rotor enables fast dynamic response, making it well-suited for applications requiring quick positioning and tight repeatability. The robust construction and reliable encoder feedback support demanding environments, while the built-in 24 VDC brake ensures immediate stops for enhanced safety. Engineers and system integrators trust this motor for applications where speed, accuracy, and dependability are critical. The MPL-B1520U-VJ74AA is compatible with a wide range of Allen Bradley servo drives, making it easy to expand or upgrade existing automation lines.
