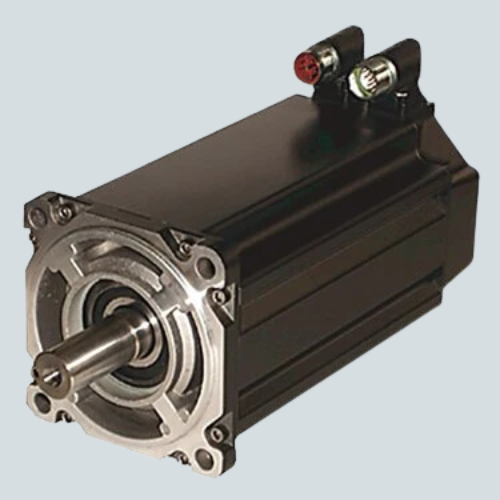

Overview of Allen Bradley MPL-A320H-HJ72AA

The Allen Bradley MPL-A320H-HJ72AA is a high-performance MP-Series low-inertia brushless servo motor designed for precise motion control in industrial automation. Operating at 230 V AC with a frame size of 100 mm (3.94 in.) and a stack length of 50.8 mm (2.0 in.), it delivers a rated speed of 3500 RPM. This servo motor includes a keyed shaft extension for secure coupling and a SpeedTEC DIN connector allowing 180° rotatable quick connect for flexible installation. Its design supports applications requiring fast acceleration and accurate positioning with reliable, continuous stall torque and peak torque capabilities. Available with various feedback options such as absolute multi-turn, single-turn encoders, and incremental encoders, it offers compatibility and adaptability within Rockwell Automation systems.

Key Features of Allen Bradley MPL-A320H-HJ72AA

  • 230 V AC armature voltage with a 3500 RPM rated speed for high-speed applications
  • Low-inertia design improves dynamic response and reduces settling time
  • Keyed shaft extension ensures positive mechanical coupling and torque transmission
  • SpeedTEC DIN connector with 180° rotatable quick-connect enhances installation flexibility
  • Multiple feedback options including incremental and absolute encoders for precise position feedback
  • Available with integral 24V brake option for improved safety and control
  • Frame size 3 (100 mm) with 50.8 mm stack length ensures compact form factor
  • IEC metric mounting with free mounting holes simplifies integration with existing equipment
  • Designed for synchronous current operation optimal for coordinated motion control systems
  • Meets industry certifications ensuring reliability in demanding industrial environments

Technical Specs of MPL-A320H-HJ72AA

Specification Details
Armature Voltage 230 V AC
Rated Speed 3500 RPM
Frame Size 3 (100 mm / 3.94 in.)
Stack Length 20 = 50.8 mm (2.0 in.)
Brake Option No Brake (integral 24V brake option available)
Connector Type SpeedTEC DIN, Right Angle, 180° Rotatable Quick Connect
Feedback Incremental Encoder (2000 lines), Absolute multi-turn and single-turn encoders available
Mounting IEC Metric with free mounting holes
Operating Temperature 0°C to 40°C

Applications / Use Case

The Allen Bradley MPL-A320H-HJ72AA servo motor is suited for a wide range of automation applications demanding precise, high-speed, and reliable motion control. It is commonly used in packaging machines, robotic arms, CNC machinery, and automated assembly lines where quick acceleration and accurate positional feedback are critical. The low-inertia design enables efficient dynamic response, making it ideal for servo-driven servo axes requiring tight control loops and repeatability. Its robust interface options and compact design allow seamless integration in systems that use Rockwell Automation controllers. Additionally, the motor’s ability to operate with optional braking and various encoder feedback options increases its versatility in safety-critical and high-precision industrial environments.
