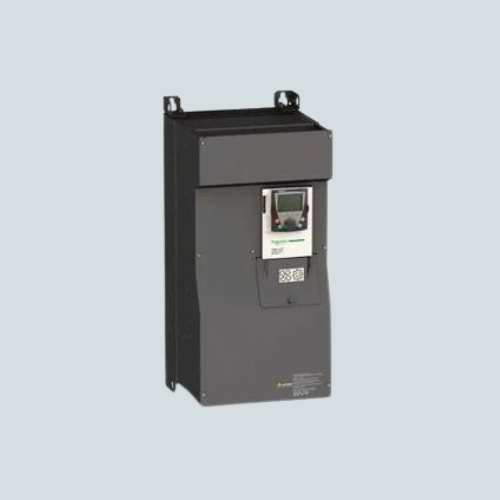

Overview of Allen-Bradley ATV61HC13N4 Variable Speed Drive

The Allen-Bradley ATV61HC13N4 is a high-performance Altivar 61 variable speed drive designed for pump and fan applications. Rated at 200 HP and 460 V, it features advanced motor control capabilities including sensorless vector control, energy-saving voltage/frequency modulation, and flexible communication options. The drive integrates with industrial networks to optimize control and efficiency for three-phase asynchronous and synchronous motors.

Key Features of ATV61HC13N4

  • Power rating: 200 HP (132 kW) at 460 V, 3-phase.
  • Maximum continuous current: 259 A at 460 V.
  • Integrated Class C2 EMC filter for minimized electromagnetic interference.
  • Switching frequency adjustable from 2.5 kHz up to 8 kHz, supporting quiet operation.
  • Control modes including V/f (voltage/frequency), sensorless vector control, and synchronous motor control.
  • Support for multiple communication protocols with optional cards: CANopen, Modbus, Profibus DPV1, DeviceNet, Ethernet/IP, and more.
  • Comprehensive protection features including motor overload, short circuit, overvoltage, undervoltage, and thermal protection.
  • Advanced diagnostic capability with onboard LED indicators and fault history logging.
  • Power supply range: 380-480 V, 3-phase, ±15% voltage tolerance.
  • Operating temperature: 0 to 50 °C, compliant with IEC and NEMA standards for industrial use.

Technical Specifications

Specification Details
Power 200 HP (132 kW), 460 V, 3-phase
Current 259 A continuous @ 460 V
Switching Frequency 2.5 to 8 kHz adjustable
Motor Types Asynchronous, synchronous
Communication Protocols CANopen, Modbus, Profibus DPV1, DeviceNet, Ethernet/IP via option cards
Power Supply Voltage 380...480 V AC (-15% to +10%)
EMC Filter Class C2 integrated
Protection Overload, short circuit, over/under voltage, thermal
Operating Temperature 0 to 50 °C (32 to 122 °F)
Enclosure Protection IP20 standard
Dimensions Approx. 360 mm wide x 1022 mm high x 377 mm deep
Weight Approx. 106 kg

Applications / Use Cases

The ATV61HC13N4 is ideal for pump and fan applications requiring precise motor control, energy savings, and integration into industrial Ethernet/IP or fieldbus networks. It is commonly deployed in HVAC systems, water treatment plants, industrial process controls, and manufacturing facilities where adaptable motor control enhances operational efficiency.
