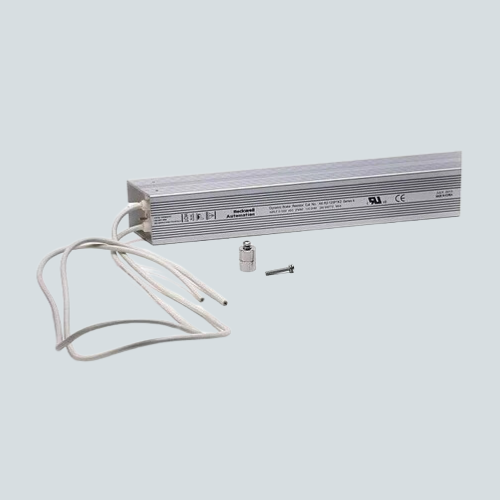

Overview of Allen-Bradley AK-R2-120P1K2 PowerFlex 70 Dynamic Brake Resistor Kit

The Allen-Bradley AK-R2-120P1K2 is a dynamic brake resistor kit designed for PowerFlex 70 drives, specifically servicing the 2.2 kW to 7.5 kW range with a 400 V AC input. This resistor has a resistance of 120 ohms and a power rating of 260 watts. It is built for external mounting and is essential for dissipating energy generated during the braking process of motor drives, ensuring effective and safe braking performance.

Key Features of Allen-Bradley - AK-R2-120P1K2

  • Resistance: 120 ohms ±5% for consistent braking performance.
  • Power Rating: 260 watts, suitable for medium duty dynamic braking applications.
  • Voltage Rating: 400-690 V AC input compatible with various PowerFlex drives.
  • Mounting: External mounting design for easy installation and heat dissipation.
  • Application: Designed for use with PowerFlex 70 drives from 2.2 kW to 7.5 kW (approx. 3 to 10 HP).
  • Protection: Includes provisions for thermal management to prevent overheating during braking cycles.
  • Certifications: Certified for safety and performance standards such as C-TICK, CCC, CE, and KC.

Technical Specifications of AK-R2-120P1K2

Model Number AK-R2-120P1K2
Resistance 120 ohms ±5%
Power Rating 260 W
Voltage Rating 400-690 V AC
Mounting External
Application PowerFlex 70 drives 2.2 kW to 7.5 kW
Certifications C-TICK, CCC, CE, KC

Applications / Use Case

This brake resistor kit is used in motor drive systems to safely dissipate braking energy generated by the PowerFlex 70 drives, enhancing system safety and reliability. It is essential in applications requiring dynamic braking such as conveyors, cranes, and other material handling equipment.
