Overview of Allen Bradley 889D-F4EC-5

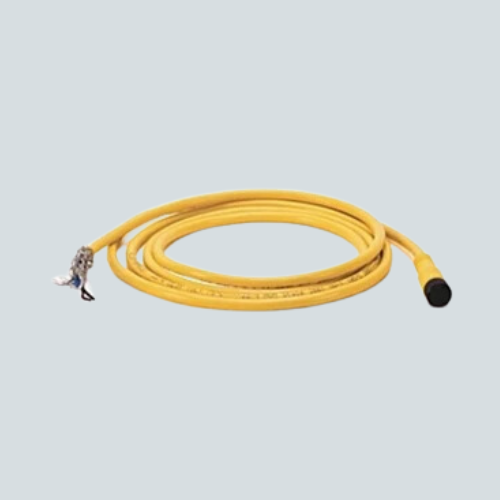

The Allen Bradley 889D-F4EC-5 is a high-quality DC Micro Cordset designed for reliable industrial connectivity. This cordset features a 4-pin, female M12 connector in a straight orientation, paired with a 5-meter PVC cable. The cable is yellow with a braided shield providing excellent protection against electrical noise, following IEC standard color coding. The conductors are 22 AWG, ensuring effective current carrying capacity and durability. It is assembled with an epoxy-coated zinc coupling nut, enhancing corrosion resistance in demanding environments. The 889D-F4EC-5 is suitable for signal and power transmission in automation systems requiring a robust, oil-resistant connection. Its durable construction and reliable connection make it an essential component for sensor and actuator wiring in industrial automation setups.Key Features of Allen Bradley 889D-F4EC-5
- DC Micro (M12) 4-pin female connector, straight design for compact and secure connections
- 5-meter length PVC cable with yellow jacket and braided shield for noise reduction
- 22 AWG multi-core cable suitable for signal and low-power transmission
- Epoxy-coated zinc coupling nut for corrosion resistance and enhanced durability
- IEC color-coded conductors for easy wiring and identification
- Oil-resistant and flexible PVC cable jacket designed for industrial environments
- Compatible with a variety of industrial sensors and actuators
- Meets standard industrial voltage rating of 300 V
- Bend radius minimum of 10 times cable diameter to maintain cable integrity
Technical Specs of 889D-F4EC-5
| Specification | Details |
|---|---|
| Connector Type | DC Micro (M12), Female, Straight, 4-Pin |
| Cable Length | 5 meters (16.4 feet) |
| Cable Jacket | Yellow PVC with braided shield |
| Conductor Size | 22 AWG |
| Cable Color Code | IEC Standard (European) |
| Voltage Rating | 300 V |
| Coupling Nut Material | Epoxy-coated Zinc |
| Temperature Range | -20°C to +105°C (-4°F to +221°F) |
| Bend Radius | 10 x cable diameter minimum |
Applications / Use Case
The Allen Bradley 889D-F4EC-5 cordset is ideal for connecting sensors, actuators, and other field devices in automated manufacturing systems. Its M12 female connector and robust cable construction support signal and control wiring in industrial environments where resistance to oils, abrasion, and electromagnetic interference is critical. It is commonly used in food and beverage processing, automotive assembly lines, packaging machinery, and robotics. The yellow PVC jacket allows for easy identification in wiring looms, reducing installation errors. With its 5-meter length, the cordset offers flexibility for various machine layouts. The braided shield ensures signal integrity over longer cable runs, enhancing system reliability and reducing downtime in production facilities.Related Resources
-
