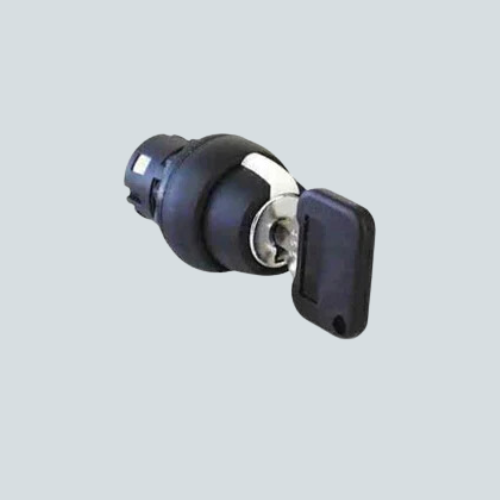

Overview of Allen-Bradley 800FM-KM23R
The Allen-Bradley 800FM-KM23R is a 22 mm keyed selector switch designed for rugged industrial environments. It features a maintained switching function with 2 positions and a keyed lock to ensure secure operation. The selector switch is part of the 800FM metal operator family, offering durable metal construction and reliable performance in demanding applications.
Key Features of Allen-Bradley 800FM-KM23R
- Operator Diameter: 22 mm
- Switching Function: Maintained (latching) with 2 positions
- Key Lock Type: 455 standard key
- Construction: Rugged metal operator for durability
- Mounting: Panel mount, 22.5 mm hole
- Contact Blocks: Stackable and color-coded for identification
- Latch Removal: Rotating collar for easy one-hand removal
- Standards: Certified to C-TICK, CCC, CSA, CUL, KC, Marine, UL
- Environmental Rating: Suitable for NEMA Type 4/4X/13
Technical Specifications of 800FM-KM23R
| Operator Diameter | 22 mm |
| Number of Positions | 2 |
| Switch Function | Maintained (latching) |
| Key Lock | 455 standard key |
| Material | Metal operator |
| Mounting Hole Diameter | 22.5 mm |
| Contact Block Features | Stackable, color-coded plungers |
| Latch Removal | Rotating collar for one-hand removal |
| Certifications | C-TICK, CCC, CSA, CUL, KC, Marine, UL |
| Environmental Rating | NEMA 4/4X/13 |
Applications / Use Case
The 800FM-KM23R keyed selector switch is ideal for applications requiring secure, reliable manual control with restricted access. It is commonly used in industrial control panels, safety interlock systems, and machinery control where key lock functionality ensures authorized operation only.
-
