5069-L380ERMS2

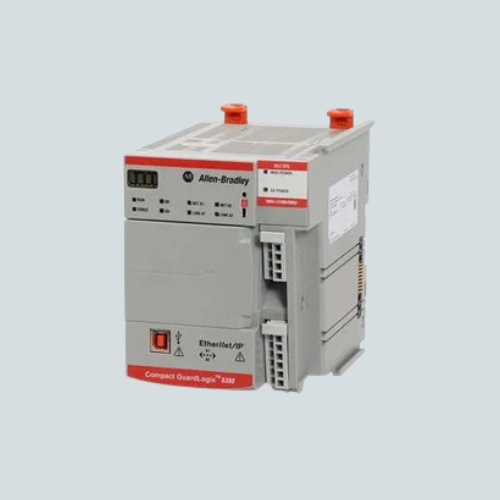

Overview of Allen-Bradley 5069-L380ERMS2 Compact GuardLogix 5380 SIL 2 Safety Controller

The Allen-Bradley 5069-L380ERMS2 is a Compact GuardLogix 5380 safety controller integrating safety and standard control in one programmable automation controller (PAC). It provides enhanced performance and troubleshooting features, with 8 MB standard memory and 4 MB safety memory. The controller supports up to 150 EtherNet/IP network nodes, 31 local I/O expansions, and 28 motion axes, offering scalable solutions for complex safety applications.

Key Features of Allen-Bradley - 5069-L380ERMS2

• Unified control and safety application in a single unit with SIL 2 safety rating.
• Memory: 8 MB standard and 4 MB safety memory for program and safety logic.
• Communication: Dual 10/100Base-T Ethernet ports supporting Device Level Ring (DLR) and star/linear topologies.
• Networking: Supports up to 150 EtherNet/IP nodes for extensive network integration.
• Local I/O: Expansion capacity up to 31 modules.
• Integrated Motion: Supports up to 28 motion axes for sophisticated motor control.
• Mounting: DIN rail horizontal mounting for efficient panel installation.
• Operating Temperature: 0 to 60 °C (32 to 140 °F).
• Power Supply: Special power configurations for MOD power and SAFETY power with defined current limits.
• Certifications: UL, CE, C-Tick, ATEX, IECEx, KC certified for global safety compliance.

Technical Specifications of 5069-L380ERMS2

Applications / Use Case

The 5069-L380ERMS2 controller is designed for complex safety systems requiring integration of standard and safety control functions. It is used in manufacturing, processing, and machinery safety systems that demand high system reliability and compliance with international functional safety standards.
