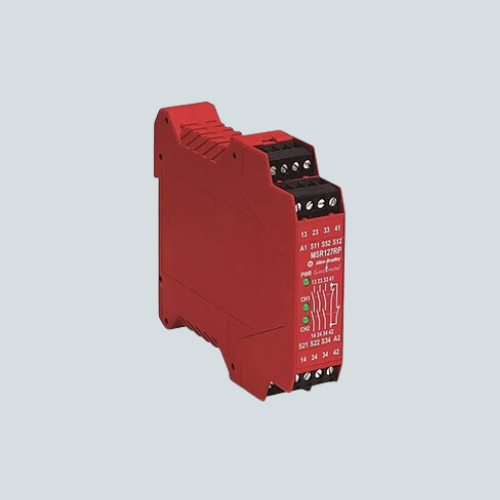

Overview of Allen-Bradley 440R-N23132
The Allen-Bradley 440R-N23132 is a single function safety relay, part of the Guardmaster product line, designed for industrial safety applications. It provides 24 V AC/DC power and features three normally open (NO) safety outputs and one normally closed (NC) auxiliary output, with automatic or manual reset options. The relay supports removable screw terminals and DIN rail mounting in a compact 22.5 mm housing.
Key Features of Allen-Bradley 440R-N23132
- Power Supply: 24 V AC/DC
- Safety Outputs: 3 Normally Open (NO)
- Auxiliary Outputs: 1 Normally Closed (NC)
- Reset: Automatic or manual reset
- Terminals: Removable screw terminal blocks
- Mounting: DIN rail mountable, 22.5 mm width
- Safety Standards: CE, cULus, BG certified
- Contact Rating: DC-13 6 A / 24 V DC, 0.1 Hz
- Operating Temperature: -5 to 55 °C
- Enclosure Material: Nylon / Polyamide 6 / PA66
Technical Specifications
| Model | 440R-N23132 |
| Power Supply Voltage | 24 V AC/DC |
| Safety Outputs | 3 NO |
| Auxiliary Outputs | 1 NC |
| Reset Type | Automatic / Manual |
| Termination | Removable Screw Terminal |
| Mounting Type | DIN Rail |
| Dimensions (HxWxD) | Approximately 99 x 22.5 x 114.5 mm |
| Contact Rating | 6 A at 24 V DC, DC-13 |
| Operating Temperature Range | -5 °C to 55 °C |
Applications / Use Case
The 440R-N23132 safety relay is designed for single-zone safety applications where reliable monitoring of safety input devices and control of safety outputs are required. It is used in machinery safety systems, light curtains, safety mats, and emergency stop circuits in manufacturing and industrial environments.
-
