Buy Allen-Bradley 2715P-T12WD – Product Overview

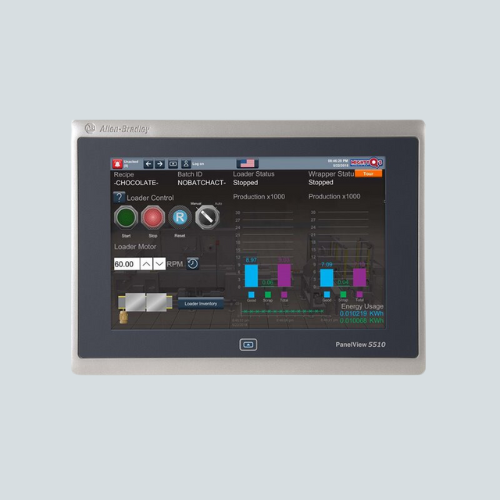

The Allen-Bradley 2715P-T12WD PanelView 5510 is a 12-inch wide-screen graphic terminal designed for OEMs and end users requiring seamless HMI and controller integration. This industrial-grade operator panel features a 12.1-inch WXGA TFT color touchscreen display with 1200x800 pixel resolution, delivering crisp 24-bit color graphics with 16.7 million colors. Powered by 24V DC, the terminal operates reliably across 18–30V DC input range and includes dual 10/100Base-T Ethernet ports with integrated EtherNet/IP and DLR support for ring topology fault tolerance. The aluminium bezel construction ensures durability in demanding factory environments, while the physical navigation button simplifies operator interaction. This PanelView 5510 model supports logix-based alarms and is certified to NEMA 4X, UL 13, UL 50, and CE standards.
Allen-Bradley 2715P-T12WD Features & Benefits
- 12.1-inch wide-screen WXGA TFT touchscreen display
- 24-bit color graphics with 300 cd/m² brightness
- EtherNet/IP with DLR embedded switch for network fault tolerance
- 1 GB RAM for complex HMI applications
- Rugged aluminium bezel and NEMA 4X enclosure rating
- Operating temperature range: 0–55°C
- Low power consumption: 26W typical
- International certifications: CE, CSA, UL, ISA Class 1 Div 2
Allen-Bradley 2715P-T12WD Specifications & Datasheet
| Specification | Value |
|---|---|
| Model | 2715P-T12WD |
| Display Size | 12.1 inches wide aspect ratio |
| Display Type | TFT color touchscreen, 1200x800 pixels |
| Power Supply | 24V DC nominal (18–30V DC) |
| Power Consumption | 26W typical, 33W maximum |
| Memory | 1 GB RAM |
| Communications | 2× 10/100Base-T Ethernet, 1× DLR port |
| Operating Temperature | 0–55°C |
| Certifications | NEMA 4X, UL 13, UL 50, CE, CSA |
Allen-Bradley 2715P-T12WD Applications in Industrial Automation
This terminal is commonly used in industrial automation, process control, machine automation, production line systems, factory control panels, and motion control systems worldwide. The PanelView 5510 series—available in 7-inch to 22-inch display sizes—serves OEMs integrating real-time HMI functionality with Logix controllers, ensuring reduced downtime through ring topology fault tolerance and embedded ethernet switching. Ideal for automotive assembly, food and beverage processing, pharmaceutical manufacturing, and discrete parts production.
Allen-Bradley 2715P-T12WD Price & Worldwide Availability
Check Allen-Bradley 2715P-T12WD pricing and availability online for global shipping. LeadTime.ca is a trusted supplier in Canada and the United States, offering export-ready automation components with fast worldwide dispatch to North America, Europe, Asia, and beyond. Order now for rapid international delivery. All products are genuine OEM, factory-tested, and sourced from verified suppliers.
Why Buy Allen-Bradley Products from LeadTime.ca
Every product on LeadTime.ca is authentic original OEM, factory-tested, and sourced from verified suppliers. As a worldwide industrial parts distributor, we provide fast worldwide shipping across North America, Europe, Asia, and international industrial markets. Contact us for bulk export pricing, real-time stock updates, and dedicated technical support for global customers.
