2711P-T7C4D9

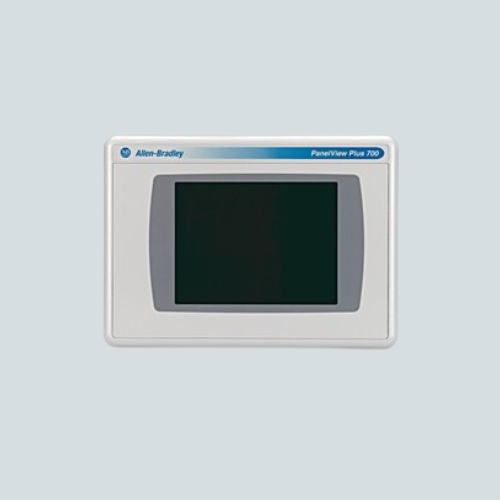

Overview of Allen-Bradley 2711P-T7C4D9 PanelView Plus Terminal

The Allen-Bradley 2711P-T7C4D9 is a PanelView Plus graphical operator terminal designed with a 6.5-inch color active matrix TFT display. It provides 18-bit color graphics at a resolution of 640 x 480 pixels, combined with an 8-wire analog resistive touchscreen interface. This terminal is built for industrial human-machine interface applications, featuring 512 MB RAM and 512 MB non-volatile memory, running Windows CE 6.0 operating system.

Key Features of 2711P-T7C4D9

• Display: 6.5-inch color active matrix TFT LCD, 640 x 480 resolution.
• Touchscreen: 8-wire analog resistive with 1 million actuations lifespan.
• Memory: 512 MB RAM and 512 MB Flash, with approximately 79 MB free user memory.
• Operating System: Windows CE 6.0 with FactoryTalk View Machine Edition software preloaded.
• Input Voltage: 18 to 32 V DC (24 V DC nominal).
• Communication Ports: Ethernet (10/100 Mbps), RS-232 serial, two USB host ports, and optional communication module slot supporting Ethernet, DH+, DH-485, or ControlNet.
• Enclosure Ratings: NEMA Type 12/13, IP54/IP65, suitable for indoor industrial environments.
• Keyboard: Stainless steel membrane with 22 programmable function keys.
• Operating Temperature: 0 to 55°C (32 to 131°F).
• Durability: Designed to withstand industrial vibration and shock.

Technical Specifications

Applications / Use Cases

The 2711P-T7C4D9 terminal is widely used in industrial automation for process control, manufacturing, and monitoring. Its color display, flexible communication options, and sturdy design make it suitable for complex human-machine interfaces requiring graphical representation and touch interaction.
