2711P-T15C22D9P-B

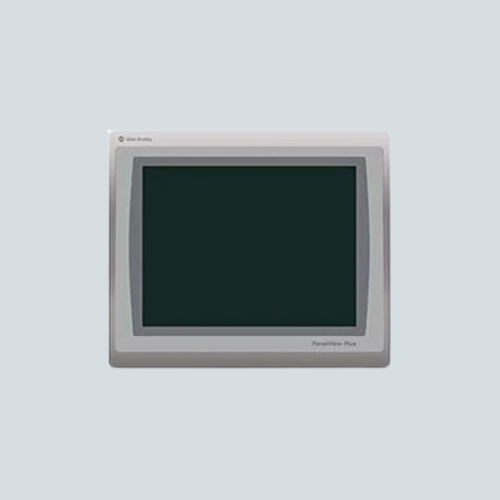

Overview of Allen Bradley PanelView Plus 7 2711P-T15C22D9P-B

The Allen Bradley PanelView Plus 7 2711P-T15C22D9P-B offers streamlined, high-performance operator interface capabilities for demanding industrial environments. With a large 15-inch TFT color touchscreen, this graphic terminal supports complex visualization, easy interaction, and rapid troubleshooting for automated systems. Its dual-port Ethernet connection provides flexible integration with plant networks and supports Distributed Linear Topology, optimizing both connectivity and reliability. The unit operates on 24V DC input and delivers robust performance with a rated IP66 enclosure, making it suitable for harsh areas where dust, water, or oil contamination are a concern. FactoryTalk View Studio software compatibility enables rapid configuration and deployment, ensuring reliable, repeatable interaction across assembly, packaging, and process automation.

Key Features of Allen Bradley PanelView Plus 7 2711P-T15C22D9P-B

• 15-inch TFT color touchscreen for detailed process visualization
• Dual-port Ethernet (DLR support) for network redundancy and fast integration
• 512 MB RAM memory for responsive performance
• Rated IP66, NEMA 4X/12/13 for maximum protection in industrial settings
• Windows CE 6.0 operating system with extended file viewer support
• Easy configuration using FactoryTalk View Studio Machine Edition

Technical Specs of 2711P-T15C22D9P-B

• Display: 15-inch TFT color touchscreen
• Input Voltage: 24V DC
• Memory: 512 MB RAM
• Dimensions (H x W x D): 318 x 381 x 69.6 mm
• Enclosure: NEMA 4X/12/13, IP66
• Operating Temperature: 0°C to 55°C
• Vibration: 0.012 in pk-pk (10–57 Hz), 2 g peak (57–500 Hz)
• Shock: 15 g (operating); 30 g (nonoperating)
• Relative Humidity: 5% to 95% (non-condensing)
• Ethernet Ports: Dual-port DLR capable
• Supported OS: Windows CE 6.0

Applications / Use Case

Allen Bradley PanelView Plus 7 2711P-T15C22D9P-B is designed for automation engineers managing large-scale process, discrete, and hybrid manufacturing operations. Its 15-inch display allows clear visualization of real-time process data and alarms, making it ideal for applications like packaging lines, material handling, water treatment, and batch controls. The IP66 enclosure ensures reliability in settings with exposure to dust, splashing water, or oil, such as food processing, chemical plants, or automotive assembly cells. Integration with FactoryTalk View and Ethernet DLR means fast, reliable communications and minimal downtime in networked architectures, providing operators and technicians with actionable insights to optimize production, reduce errors, and speed up maintenance response.
