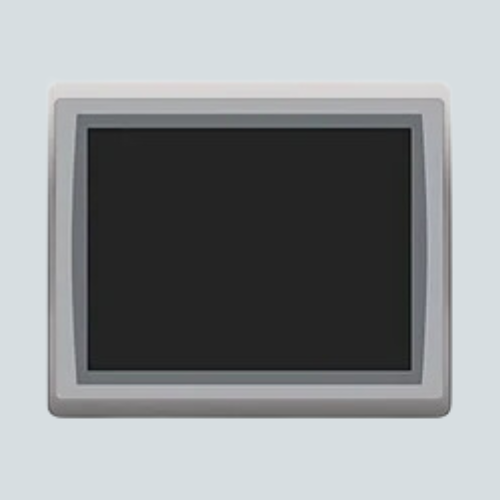

Overview of Allen Bradley 2711P-T15C22D8S-B

The Allen Bradley 2711P-T15C22D8S-B is a 15-inch operator interface terminal in the PanelView Plus 7 Standard family. This model provides a user-friendly, full-color touchscreen for real-time monitoring and control of automated processes. It delivers reliable operation in demanding industrial environments, supporting a wide range of visualization and control tasks. Key benefits include its large display, high resolution, and robust design for panel-mount enclosures. Its compatibility with FactoryTalk View ME software enables efficient configuration and integration. With proven performance, intuitive operation, and strong industrial certifications, the 2711P-T15C22D8S-B is well suited to production line environments requiring dependable, flexible HMI solutions.

Key Features of Allen Bradley 2711P-T15C22D8S-B

  • Large 15-inch TFT color touchscreen display for detailed process visualization
  • Resistive analog touch interface rated for 1 million actuations
  • Resolution of 1024 x 768 pixels with 300 nits brightness
  • Integrated 512 MB RAM and 512 MB internal storage, expandable with SD cards
  • Embedded dual Ethernet ports with switch capability
  • Wide operating temperature range and IP66/NEMA 4X rating for indoor use
  • Supports multiple communication protocols and FactoryTalk View ME

Technical Specs of 2711P-T15C22D8S-B

  • Display: 15" TFT color, 1024 x 768 (XGA), 300 nits brightness
  • Touchscreen: Analog resistive, 1 million actuations, 100g force
  • Memory: 512 MB RAM, 512 MB storage, 80 MB nonvolatile application storage
  • SD Card Slot: Supports Allen Bradley SD cards (1 GB, 2 GB, 8 GB, 32 GB supported)
  • Power: 24 V DC input
  • Operating Temp: 0…55°C (32…131°F)
  • Enclosure: NEMA 12, 13, 4X (indoor), IP54/IP66 classification
  • Battery: CR2032 lithium, ≥4-year life at 25°C
  • Certifications: UL, CE, ATEX, IECEx

Applications / Use Case

The Allen Bradley 2711P-T15C22D8S-B excels in industrial automation as a high-visibility interface for plant floor operators. It is used on production lines, assembly stations, and process monitoring stations that demand graphical displays and user input. This terminal allows operators to interact with PLCs, view real-time process data, issue commands, and receive critical alerts directly from the panel. Its robust environmental ratings make it suitable for manufacturing, food and beverage processing, water treatment, and OEM machinery integration. Engineers select this model for installations where screen size and clarity enhance workflow efficiency, limit human error, and support safe process operation, even in demanding environments.
