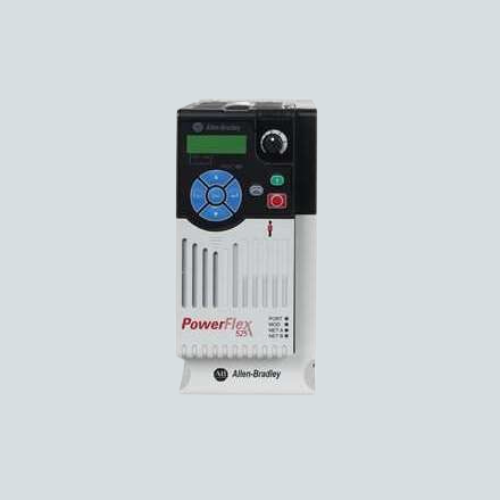

Overview of Allen Bradley 25B-V6P0N104

The Allen Bradley 25B-V6P0N104 is a PowerFlex 525 adjustable frequency AC drive designed for industrial motor control applications requiring a reliable and compact solution. It operates on a single-phase 100-120 VAC input voltage and delivers a three-phase 0-230 VAC output with a current rating of 6 Amperes. Rated for 1.1 kW (1.5 HP), this drive supports various motor control methods including V/Hz Control, Sensorless Vector Control, Closed Loop Velocity Vector Control, and Permanent Magnet Motor Control. The 25B-V6P0N104 comes with built-in Ethernet/IP communication and safety features, making it suitable for integration into modern industrial automation systems. Its compact size, panel-mount design, and NEMA/IP20 enclosure rating enable flexible installation in control panels.

Key Features of Allen Bradley 25B-V6P0N104

  • Input voltage range: 85-132 VAC, single-phase
  • Output: three-phase, 0-230 VAC with 6 Amp output current
  • Power rating: 1.1 kW (1.5 HP) for both normal and heavy duty
  • Built-in Ethernet/IP communication port for streamlined network integration
  • Class 10 electronic motor overload protection and over-temperature safeguards
  • Multiple motor control options including Sensorless Vector and Closed Loop Velocity Vector Control
  • Embedded discrete and analog I/O for flexible control configurations
  • Compact panel-mount design with NEMA/IP20 UL open type enclosure rating
  • Safety functions including Safe Torque Off (STO) feature for enhanced personnel protection

Technical Specs of 25B-V6P0N104

Parameter Specification
Input Voltage 100-120 VAC, 1-phase
Output Voltage 0-230 VAC, 3-phase
Output Current 6 Amps
Power Rating 1.1 kW (1.5 HP)
Motor Overload Protection Class 10 electronic
Communication Ethernet/IP, RS485
Control Methods V/Hz, Sensorless Vector, Closed Loop Velocity Vector, Permanent Magnet
Dimensions (WxHxD) 3.43 x 7.09 x 6.77 inches (87 x 180 x 172 mm)
Weight 3.5 lb (1.6 kg)
Enclosure NEMA/IP20 UL Open Type

Applications / Use Case

The Allen Bradley 25B-V6P0N104 PowerFlex 525 drive is ideal for motor control in applications demanding precise speed and torque management at lower voltages. It is commonly used in light industrial machinery, conveyors, fans, pumps, and material handling equipment. Its embedded Ethernet/IP and safety features simplify integration into automation systems requiring communication and safety compliance. Panel-mount installation and compact size allow easy retrofitting in existing control panels or OEM machines. The drive supports industries such as manufacturing, packaging, HVAC, and water treatment by improving energy efficiency and motor performance while offering reliable overload and fault protection.
