25B-D6P0N114
25B-D6P0N114
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.

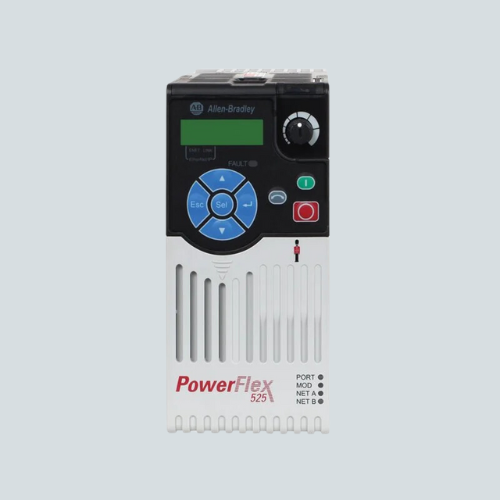

Overview of Allen-Bradley 25B-D6P0N114
The Allen-Bradley 25B-D6P0N114 is a PowerFlex 525 Series air-cooled AC drive designed for motor control in industrial applications. It supports three-phase input voltage of 380-480 V AC with an output power rating of 2.2 kW (3 HP) and an output current of 6 Amps. The drive features embedded EtherNet/IP and safety functionality, making it suitable for integrated automation systems.
Key Features
- Three-phase input voltage: 380-480 V AC
- Output power: 2.2 kW (3 HP)
- Output current: 6.0 A
- IP20 (NEMA Type Open) enclosure for panel mounting
- Frame Size A, air-cooled design with built-in EMC filter
- Integrated Ethernet/IP communication support
- Safe Torque Off (STO) safety feature, SIL2 certified
- Built-in brake IGBT and removable MOV for dynamic braking and surge protection
- Support for sensorless vector and closed-loop vector motor control
Technical Specifications
| Model | 25B-D6P0N114 |
| Series | PowerFlex 525 |
| Input Voltage | 380-480 V AC, 3-phase |
| Output Power | 2.2 kW (3 HP) |
| Output Current | 6.0 A |
| Enclosure Type | IP20, NEMA Type Open |
| Frame Size | A |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Communication Interfaces | EtherNet/IP, USB, RS-485 |
| Safety Features | Safe Torque Off (STO), SIL2 certified |
Applications
The 25B-D6P0N114 is ideal for industrial motor control applications such as conveyors, pumps, fans, and mixers that require precise speed and torque control with integrated safety features. It supports easy integration into EtherNet/IP networks and offers reliable performance in moderate power ranges.
