22C-D142A103
22C-D142A103
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.

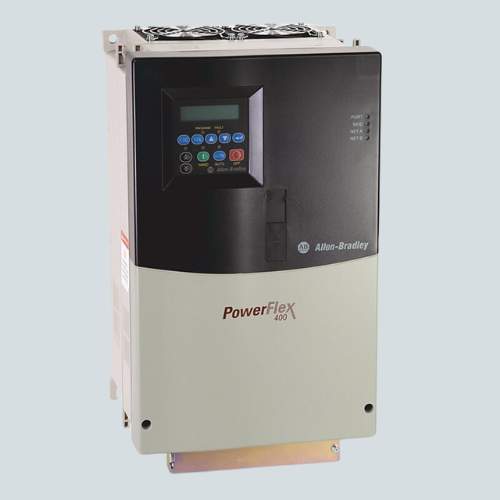

Overview of Allen Bradley 22C-D142A103
The Allen Bradley 22C-D142A103 is a PowerFlex 400 series adjustable frequency AC drive designed for demanding fan and pump applications. With a robust 100 HP (75 kW) rating, this drive offers reliable variable speed control for industrial motors across a wide range of environments. The 22C-D142A103 accepts three-phase 480V AC input and delivers an output current of 142 amps, making it suitable for substantial HVAC, ventilation, and process pumping systems. Its panel-mount design, IP30 enclosure, and NEMA 1/UL Type 1 rating ensure protection against dust and contamination while maintaining easy access for installation and service. The drive includes an integrated keypad and LED display for straightforward setup and diagnostics, supporting both standalone and networked control architectures.
Key Features of Allen Bradley 22C-D142A103
- 100 HP (75 kW) output rating, 142 amps at 480V AC, three-phase input
- Optimized for fan and pump applications with energy-saving algorithms
- Integrated PID and pump/fan control logic for precise process control
- Panel-mount construction with IP30 rated (NEMA 1/UL Type 1) enclosure
- Fixed keypad with LED display for easy commissioning and monitoring
- RS485 (Modbus RTU) communication interface for network connectivity
- High efficiency – 97.5% at rated load for reduced operating costs
- Wide input voltage tolerance (460V ±10%) and frequency range (48-63 Hz)
- Meets international standards: C-TICK, CE, CUL, GOST, KC, UL
- Supports fire system tie-in for safety-critical applications
Technical Specs of 22C-D142A103
| Power Rating | 75 kW (100 HP) |
| Output Current | 142 A |
| Input Voltage | 480V AC, 3-Phase |
| Frequency Range | 50-60 Hz |
| Efficiency | 97.5% (at rated load) |
| Power Factor | 0.98 |
| Enclosure | IP30 (NEMA 1 / UL Type 1) |
| Mounting | Panel Mount |
| Communication | RS485 (Modbus RTU) |
| User Interface | Fixed Keypad, LED Display |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Protection | Short circuit, overcurrent, overtemperature |
Applications / Use Case
The Allen Bradley 22C-D142A103 is engineered for applications requiring precise, efficient motor control, particularly in large-scale HVAC, industrial ventilation, and water/wastewater pumping systems. Its advanced fan and pump algorithms help reduce energy consumption and mechanical stress, lowering both operational costs and maintenance requirements. The drive is commonly used in air handling units, cooling towers, and process pumping stations, where reliable, adjustable speed control is critical. The robust enclosure and compliance with international standards also make this drive a dependable choice for installations requiring consistent, long-term performance in challenging environments.
