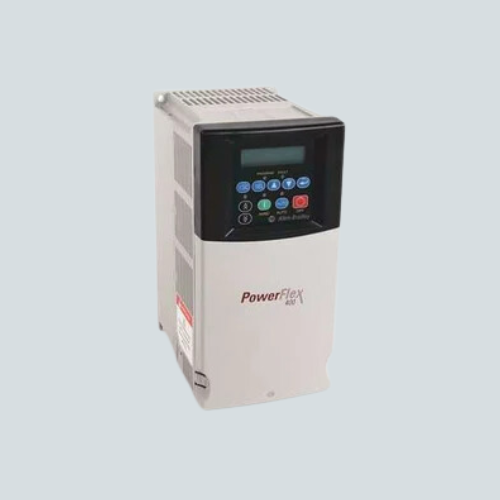

Overview of Allen Bradley 22C-D022N103

The Allen Bradley 22C-D022N103 is a PowerFlex 400 Adjustable Frequency AC Drive designed for fan and pump applications. This drive supports three-phase input, with a voltage rating from 380 to 528V AC, and delivers up to 22A output current, equivalent to 11 kW (15 HP). The unit is housed in a panel-mountable IP20 (open) enclosure, making it suitable for use in controlled environments. Featuring a fixed, integrated keypad and LED display, the 22C-D022N103 provides straightforward local control and status monitoring. It is engineered for reliability and efficiency, backing standard automation integration with RS485 communication and offers built-in PID and PIP algorithms for precise motor control. This model is certified for global markets, meeting CE, UL, and C-Tick standards, and is a proven solution for demanding HVAC, water, and other process applications where variable speed control is essential.

Key Features of Allen Bradley 22C-D022N103

  • Designed for fan and pump applications with optimized control algorithms.
  • Three-phase 380–528V AC input, 22A output, supporting 11 kW (15 HP) motors.
  • IP20 open-type enclosure, panel-mount design for space efficiency.
  • Integrated keypad and LED display for easy commissioning and monitoring.
  • RS485 communication for direct integration into automation networks.
  • Built-in PID and PIP control for precision in process applications.
  • Fire system tie-in capability, enhancing safety and integration.
  • Brake IGBT not included; suitable for standard deceleration duties.
  • Certifications: UL, CE, C-Tick, CUL, GOST, KC.
  • Fixed terminal block connections for secure wiring.

Technical Specs of Allen Bradley 22C-D022N103

Input Voltage 380–528V AC, 3-phase, 50/60 Hz
Output Current 22A
Power Rating 11 kW (15 HP)
Enclosure Rating IP20 (Open)
Communication RS485
Control Interface Fixed Keypad, LED
Control Features PID, PIP, Fire System Tie-in
Power Factor 0.98
Mounting Panel Mount
Certifications UL, CE, C-Tick, CUL, GOST, KC

Applications / Use Case

The Allen Bradley 22C-D022N103 is especially effective in HVAC, water treatment, and industrial pumping applications. Its optimized control for fans and pumps ensures quieter operation, energy savings, and reduced mechanical stress on connected systems. The drive’s built-in PID and PIP algorithms allow precise regulation of flow, pressure, and temperature, making it ideal for process control tasks. With an open-type enclosure and panel-mount design, it is best suited for installation inside control panels in machinery rooms or equipment shelters. Its global certifications and dependable performance make it a solid choice for OEMs, system integrators, and end-users aiming for reliable speed control in critical infrastructure.
