22B-D6PON104
Regular price
$814.61
Sale price
$814.61
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Have a target price? No worries, submit your target price below
Overview of Allen-Bradley 22B-D6P0N104

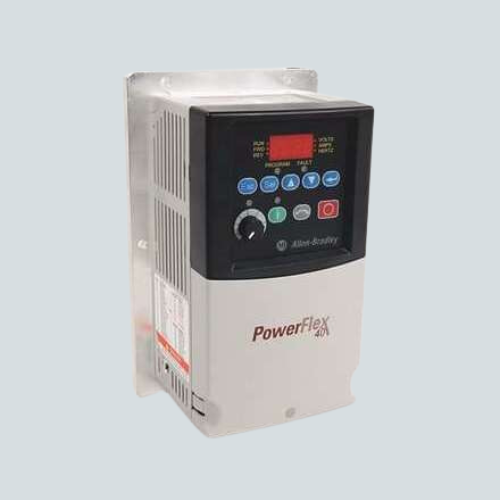

The Allen-Bradley 22B-D6P0N104 is a PowerFlex 40 AC drive designed for three-phase 480 VAC input power. It delivers a rated output current of 6 Amps and supports motors up to 2.2 kW (3 HP). The drive is panel mounted with an IP20, NEMA/UL Type Open enclosure, featuring an integral keypad and LED display for user interaction.
Key Features of Allen-Bradley 22B-D6P0N104
- Input Voltage: 380-480 VAC, 3-phase supply.
- Output Current: 6 Amps continuous output current.
- Power Rating: Supports motors up to 2.2 kW (3 HP).
- Panel Mount Enclosure: IP20 rated with NEMA/UL Type Open enclosure.
- Braking IGBT: Included for dynamic braking capability.
- User Interface: LED keypad display for easy drive programming and monitoring.
- Communication: RS485 port for remote monitoring and control.
- Control Options: Sensorless vector and volts per hertz (V/Hz) control for flexible motor management.
Technical Specs of Allen-Bradley 22B-D6P0N104
| Specification | Details |
|---|---|
| Input Voltage | 380-480 VAC, 3 Phase |
| Output Current | 6 Amps |
| Power Rating | 2.2 kW (3 HP) |
| Enclosure | Panel Mount, IP20, NEMA/UL Type Open |
| Braking IGBT | Included |
| User Interface | LED Keypad Display |
| Communication Port | RS485 |
| Control Methods | Sensorless Vector, V/Hz Control |
| Frame Size | B |
Applications / Use Case
The 22B-D6P0N104 is suited for industrial motor applications including fans, pumps, conveyors, and machine tools requiring dynamic braking and precise control in three-phase systems.
Allen-Bradley offers global support and industrial-grade durability for this PowerFlex 40 drive.
-
